Adjustment plugs - VJRAF

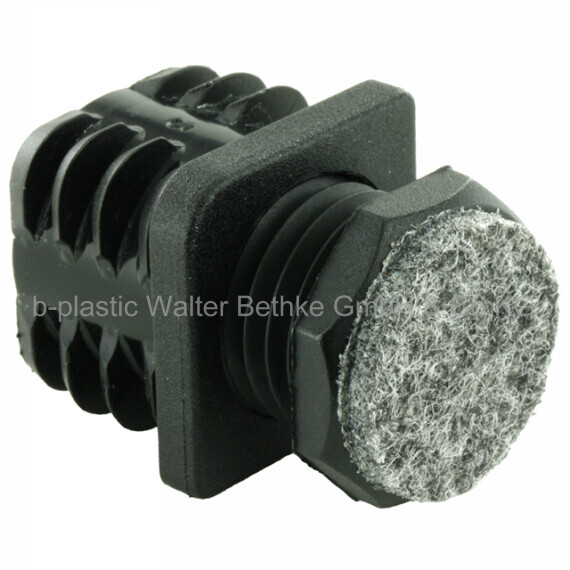

Adjusting plugs made of PA 6 for square tubes with one piece outer body, an edge R6, injection moulded thread and felt slide base

Your session has expired, please log in again.
VJRAF
VJRAF
VJRAF
VJRAF
VJRAF
VJRAF
VJRAF
VJRAF
VJRAF
VJRAF
PDF data sheet
  • Base body: Polyamide (PA 6)
  • Slide base: synthetic needle felt (polyester)
black RAL 9005
  • The specified axial, static load capacity refers to a screw turned out 10 mm and resting on the full surface.
  • Adjusting plugs are not suitable as load gliders.
  • Adjusting plugs are not suitable for dynamic load.
  • Further sizes
  • Other special productions
  • Please observe the material hints for polyamide (PA).

Configure your article. Enter multiple parameters to get the best result.

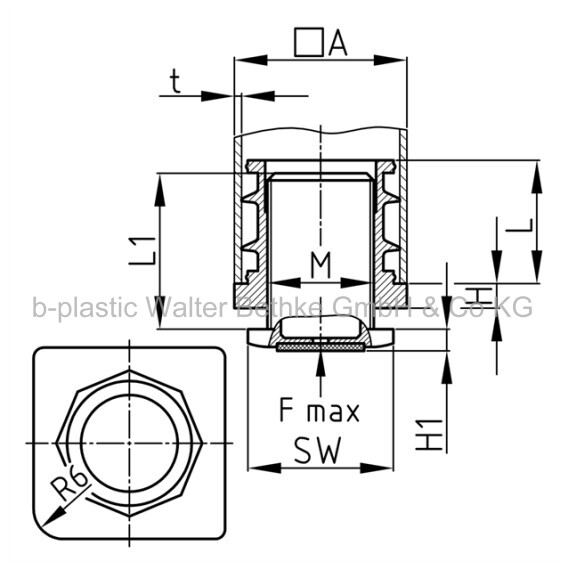

A in mm:

F max. in kg:

H in mm:

H1 in mm:

L in mm:

L1 in mm:

M:

R in mm:

WAF in mm:

t in mm:

Your article results:
