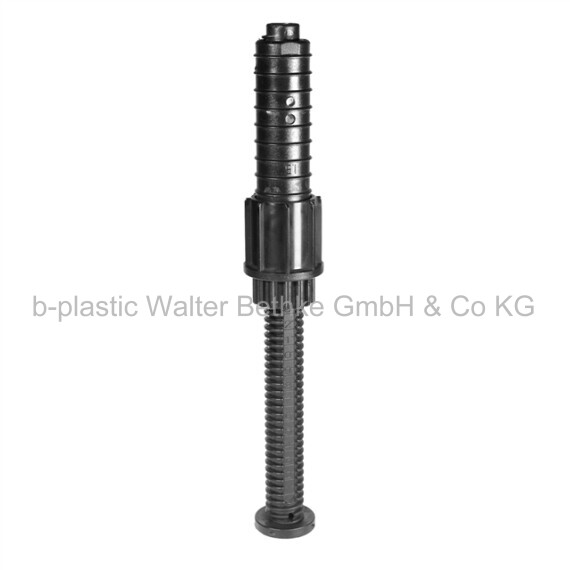

Heavy duty adjustment plug - RJ SPEZIAL

Heavy duty adjusting plugs made of PA for round tubes with a variety of combinable individual parts

Your session has expired, please log in again.
RJ SPEZIAL
RJ SPEZIAL
RJ SPEZIAL-Adapter
RJ SPEZIAL-Kontermutter
RJ SPEZIAL-Blendhülse
RJ SPEZIAL
RJ SPEZIAL
RJ SPEZIAL-Kontermutter
RJ SPEZIAL-Blendhülse
RJ SPEZIAL
RJ SPEZIAL
RJ SPEZIAL-Adapter
RJ SPEZIAL-Kontermutter
RJ SPEZIAL-Blendhülse
RJ SPEZIAL
RJ SPEZIAL
RJ SPEZIAL-Adapter
RJ SPEZIAL-Kontermutter
PDF data sheet
  • Polyamide (PA)
black
  • The axial, static load capacity with a complete flat resting screw is 500 kg.
  • 7 mm hole in the screw
  • Square in the screw base
  • The thread is the same for all variants (acme thread).
  • 38 x 1,5 (threaded bush)
  • 38 x 2 (threaded bush)
  • 40 x 1,5 (threaded bush)
  • 40 x 2 (threaded bush)
  • 50 x 1 (threaded bush 38 x 1,5 + adapter 50 x 1)
  • 50 x 1,5 (threaded bush 38 x 1,5 + adapter 50 x 1,5)
  • 50 x 2 (threaded bush 38 x 1,5 + adapter 50 x 2)

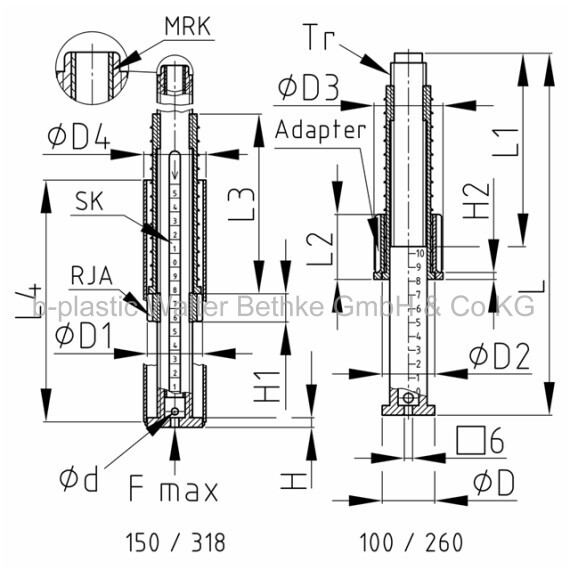

  • SK = with scale for adjustment
  • MRK = with metal tube core
  • RJA sp. = with knurled lock nut (only for screw 150 / 318)
  • 100 / 260 = 100 mm adjustment length and 260 mm total length
  • 150 / 318 = 150 mm adjustment length and 318 mm total length
  • V1 = RJ special 38 x 1,5 / 100
  • V2 = RJ special 38 x 2 / 100
  • V3 = RJ special 40 x 1,5 / 100
  • V4 = RJ special 40 x 2 / 100
  • V5 = RJA special 38 x 1,5 / 150
  • V6 = RJA special 38 x 2 / 150
  • V7 = RJA special 40 x 1,5 / 150
  • V8 = RJA special 40 x 2 / 150
  • V9 = RJA special 38 x 1,5 / 150 / MRK SK
  • V10 = RJA special 38 x 2 / 150 / MRK SK
  • V11 = RJA special 40 x 1,5 / 150 / MRK SK
  • V12 = RJA special 40 x 2 / 150 / MRK SK
  • V13 = RJA special 50 x 1 / 150 / MRK SK
  • ...more on inquiry

Configure your article. Enter multiple parameters to get the best result.

V 1:

V 2:

V 3:

V 4:

V 5:

V 6:

V 7:

V 8:

V 9:

V 10:

V 11:

V 12:

V 13:

D in mm:

D1 in mm:

D2 in mm:

D3 in mm:

D4:

F max. in kg:

H in mm:

H1 in mm:

H2 in mm:

L in mm:

L1 in mm:

L2 in mm:

L3 in mm:

L4:

Tr in mm:

Your article results:

  • RJ sp. Gewindehülse 38x1,5
    RJ sp. Gewindehülse 38x1,5
  • RJ sp. Gewindehülse 38x2
    RJ sp. Gewindehülse 38x2
  • RJ sp. Gewindehülse 40x1,5
    RJ sp. Gewindehülse 40x1,5
  • RJ sp. Gewindehülse 40x2
    RJ sp. Gewindehülse 40x2
  • RJ sp. Adapter50x1,5 (38x1,5)
    RJ sp. Adapter50x1,5 (38x1,5)
  • RJ sp. Adapter 50x2 (38x1,5)
    RJ sp. Adapter 50x2 (38x1,5)
  • RJ sp. Schraube 100 / 260 SK
    RJ sp. Schraube 100 / 260 SK
  • RJ sp. Schraube 150 / 318
    RJ sp. Schraube 150 / 318
  • RJ sp. Schraube 150 / 318 MRK
    RJ sp. Schraube 150 / 318 MRK
  • RJ sp. Schraube 150 / 318 MRK SK
    RJ sp. Schraube 150 / 318 MRK SK

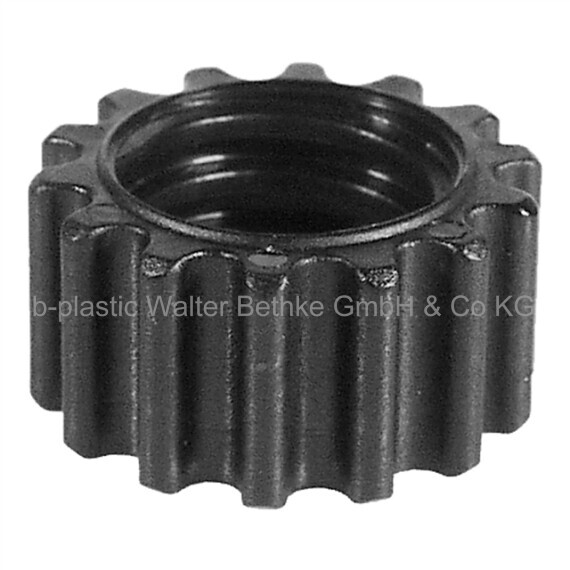

  • RJ sp. Kontermutter 39 / 21 (25)
    RJ sp. Kontermutter 39 / 21 (25)

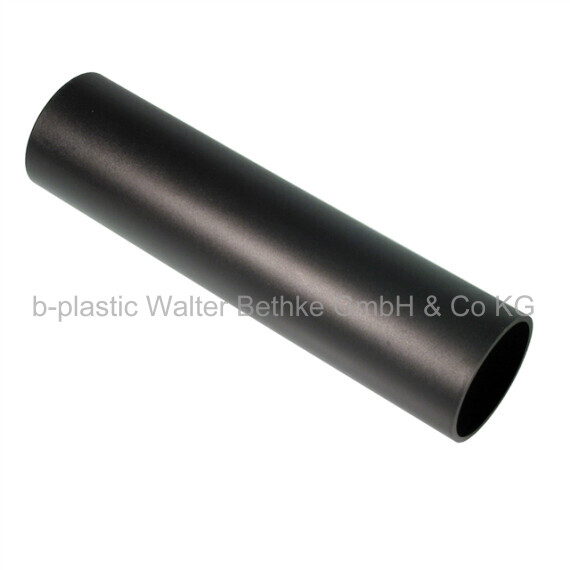

  • RJ sp. Blendhülse 43x175
    RJ sp. Blendhülse 43x175
