Overhead bracing srew - D

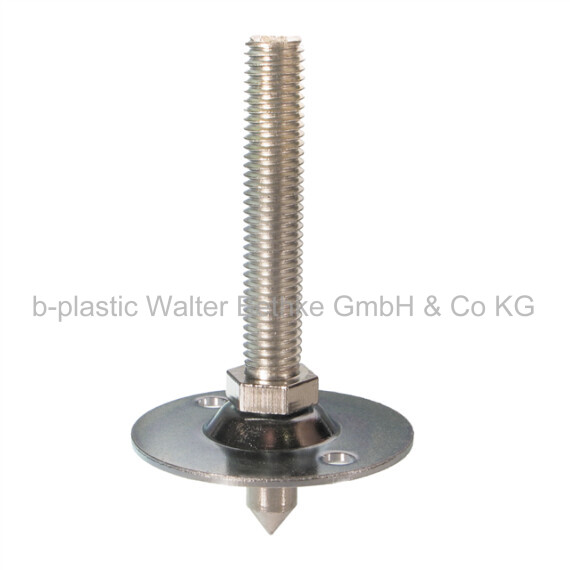

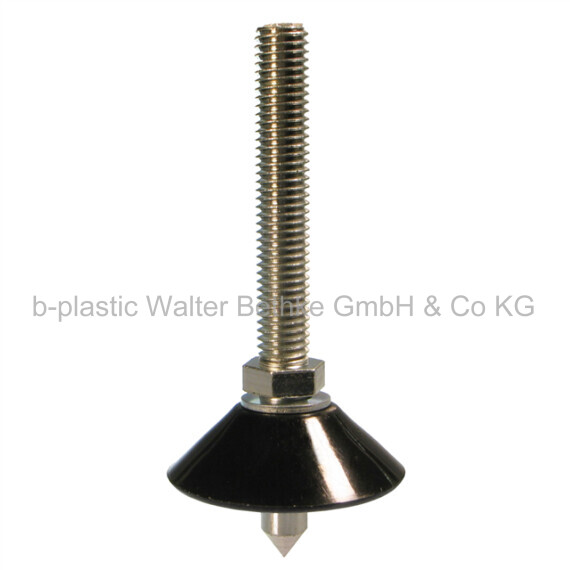

Overhead bracing screws (hexagonal) with swivel steel or plastic foot
Your session has expired, please log in again.

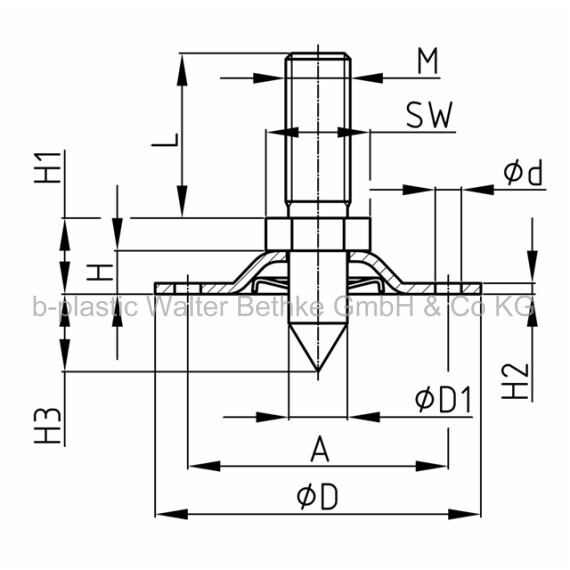

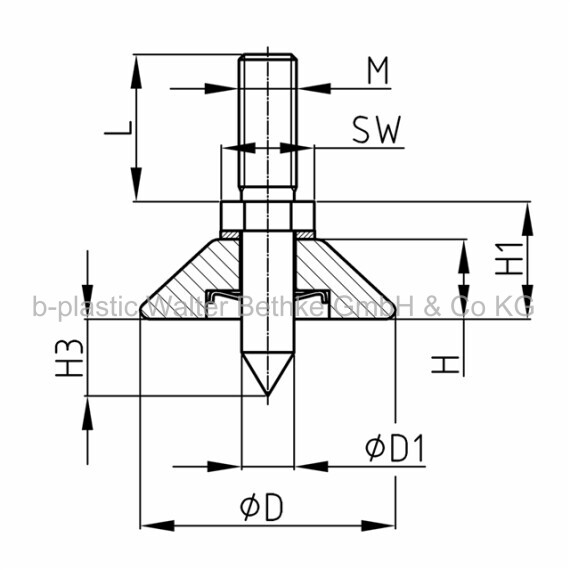

Configure your article. Enter multiple parameters to get the best result.
A in mm:
d in mm:
D in mm:
D1 in mm:
H in mm:
H1 in mm:
H2 in mm:
H3 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. A
mmd
mmD
mmD1
mmH
mmH1
mmH2
mmH3
mmL
mmM WAF
mm- D 302
D 302 30 9 6,5 12 1,5 17 55 M10 14 - D 702
D 702 36,5 5,2 47 9 6 12 1,5 18 55 M10 14 - D 706 *
D 706 * 44 9 14,5 21 17 60 M10 14
