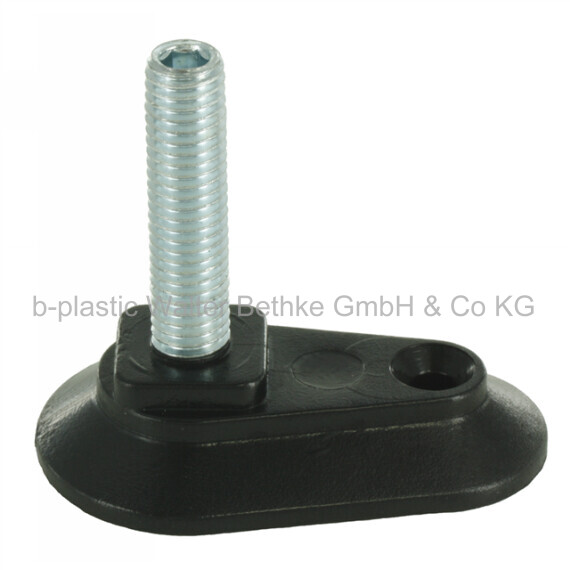

Adjusting screw - KFO
Adjustable screws with oval plastic foot made of ABS, moulded square, hexagon in the threaded end and mounting hole
Your session has expired, please log in again.

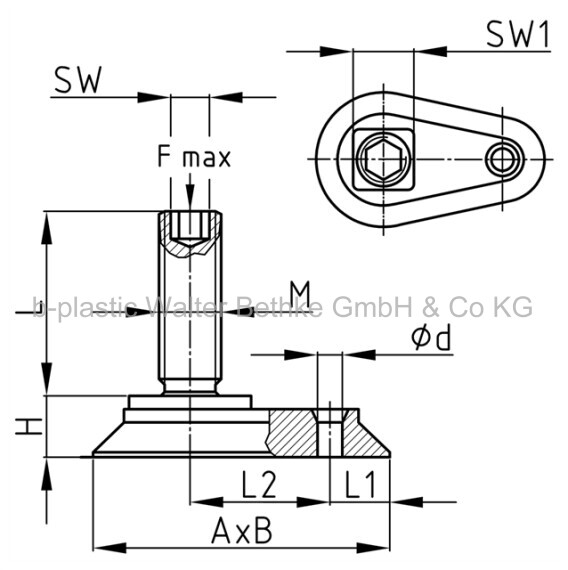

Configure your article. Enter multiple parameters to get the best result.
A in mm:
B in mm:
d in mm:
F max. in kg:
H in mm:
L in mm:
L1 in mm:
L2 in mm:
M:
WAF in mm:
SW1 in mm:
Your article results:
Order-No. A
mmB
mmd
mmF max.
kgH
mmL
mmL1
mmL2
mmM WAF
mmSW1
mm- KFO 65x40 / M10x10
KFO 65x40 / M10x10 65 40 5 550 15 10 15 30 M10 5 19 - KFO 65x40 / M10x20
KFO 65x40 / M10x20 65 40 5 550 15 20 15 30 M10 5 19 - KFO 65x40 / M10x25
KFO 65x40 / M10x25 65 40 5 550 15 25 15 30 M10 5 19 - KFO 65x40 / M10x40
KFO 65x40 / M10x40 65 40 5 550 15 40 15 30 M10 5 19 - KFO 65x40 / M10x50
KFO 65x40 / M10x50 65 40 5 550 15 50 15 30 M10 5 19 - KFO 65x40 / M10x60
KFO 65x40 / M10x60 65 40 5 550 15 60 15 30 M10 5 19
