Adjusting screw - 70 ISK

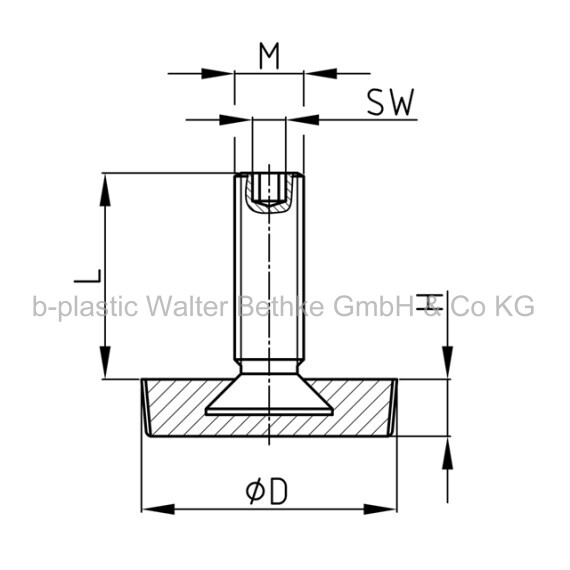

Adjusting screws with knurled plastic base made of PA and hexagon inside the thread end, thread bolt overmoulded
Configure your article. Enter multiple parameters to get the best result.
D in mm:
H in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. D
mmH
mmL
mmM WAF
mm- 70-25 / M10x25 ISK
70-25 / M10x25 ISK 25 6 19 M10 4 - 70-25 / M10x30 ISK
70-25 / M10x30 ISK 25 6 24 M10 4 - 70-25 / M10x40 ISK
70-25 / M10x40 ISK 25 6 34 M10 4 - 70-25 / M10x50 ISK
70-25 / M10x50 ISK 25 6 44 M10 4 - 70-25 / M10x60 ISK
70-25 / M10x60 ISK 25 6 54 M10 4 - 70-29 / M10x25 ISK
70-29 / M10x25 ISK 29 7 19 M10 4 - 70-29 / M10x30 ISK
70-29 / M10x30 ISK 29 7 24 M10 4 - 70-29 / M10x40 ISK
70-29 / M10x40 ISK 29 7 34 M10 4 - 70-29 / M10x50 ISK
70-29 / M10x50 ISK 29 7 44 M10 4 - 70-29 / M10x60 ISK
70-29 / M10x60 ISK 29 7 54 M10 4 - 70-32 / M10x25 ISK
70-32 / M10x25 ISK 32 8 19 M10 4 - 70-32 / M10x30 ISK
70-32 / M10x30 ISK 32 8 24 M10 4 - 70-32 / M10x40 ISK
70-32 / M10x40 ISK 32 8 34 M10 4 - 70-32 / M10x50 ISK
70-32 / M10x50 ISK 32 8 44 M10 4 - 70-32 / M10x60 ISK
70-32 / M10x60 ISK 32 8 54 M10 4 - 70-38 / M10x25 ISK
70-38 / M10x25 ISK 38 9 19 M10 4 - 70-38 / M10x30 ISK
70-38 / M10x30 ISK 38 9 24 M10 4 - 70-38 / M10x40 ISK
70-38 / M10x40 ISK 38 9 34 M10 4 - 70-38 / M10x50 ISK
70-38 / M10x50 ISK 38 9 44 M10 4 - 70-38 / M10x60 ISK
70-38 / M10x60 ISK 38 9 54 M10 4 - 70-44 / M10x25 ISK
70-44 / M10x25 ISK 44 10 19 M10 4 - 70-44 / M10x30 ISK
70-44 / M10x30 ISK 44 10 24 M10 4 - 70-44 / M10x40 ISK
70-44 / M10x40 ISK 44 10 34 M10 4 - 70-44 / M10x50 ISK
70-44 / M10x50 ISK 44 10 44 M10 4 - 70-44 / M10x60 ISK
70-44 / M10x60 ISK 44 10 54 M10 4 - 70-60 / M10x25 ISK
70-60 / M10x25 ISK 60 10 19 M10 4 - 70-60 / M10x30 ISK
70-60 / M10x30 ISK 60 10 24 M10 4 - 70-60 / M10x40 ISK
70-60 / M10x40 ISK 60 10 34 M10 4 - 70-60 / M10x50 ISK
70-60 / M10x50 ISK 60 10 44 M10 4 - 70-60 / M10x60 ISK
70-60 / M10x60 ISK 60 10 54 M10 4
