Adjusting screw - 88 ISK

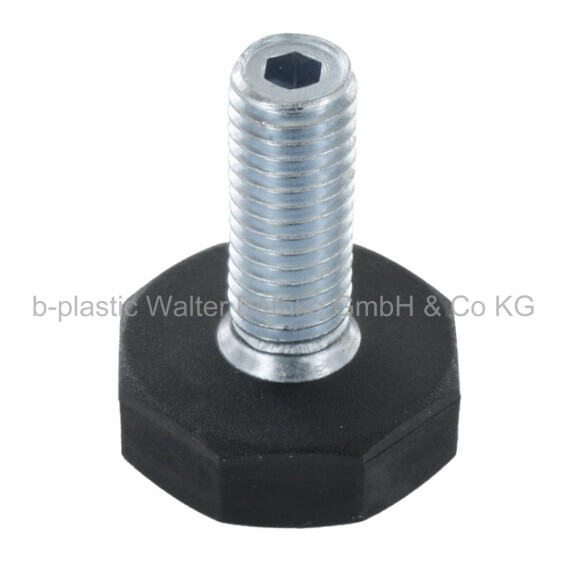

Adjusting screws with octagonal plastic base made of PA and hexagon inside the thread end, thread bolt overmoulded
Configure your article. Enter multiple parameters to get the best result.

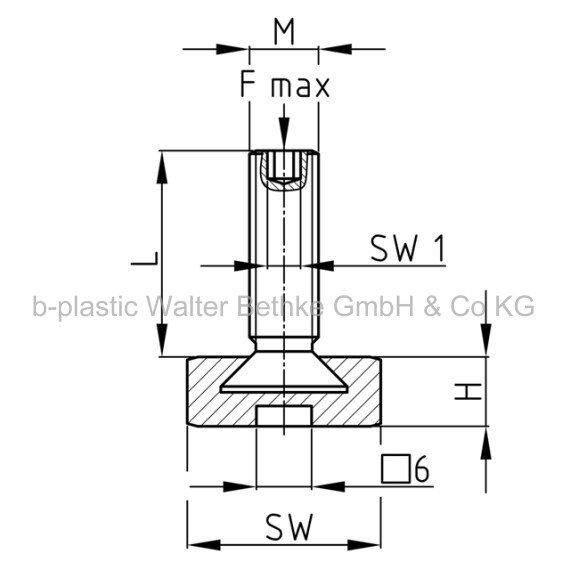

F max. in kg:
H in mm:
L in mm:
M:
WAF in mm:
SW1 in mm:
Your article results:
Order-No. F max.
kgH
mmL
mmM WAF
mmSW1
mm- 88-27/9 M10x25 ISK
88-27/9 M10x25 ISK 400 9 21 M10 27 4 - 88-27/9 M10x30 ISK
88-27/9 M10x30 ISK 400 9 26 M10 27 4 - 88-27/9 M10x40 ISK
88-27/9 M10x40 ISK 400 9 36 M10 27 4 - 88-27/9 M10x50 ISK
88-27/9 M10x50 ISK 400 9 46 M10 27 4 - 88-27/9 M10x60 ISK
88-27/9 M10x60 ISK 400 9 56 M10 27 4
Login to get price and discount information for all products.
Product variants
Accessories
RG
Threaded plugs made of PA for round tubes with injected plastic thread
RGM
Threaded plugs, two-piece, for round tubes with inserted steel thread
RGML
Threaded plugs made of PA for round tubes with overmoulded steel thread
VG
Threaded plugs made of PA for square tubes with injected plastic thread
QAF
Threaded plugs made of PP for square tubes with injection moulded plastic thread
RAF
Threaded plugs made of PP for rectangular tubes with injection moulded plastic thread
VGM
Threaded plugs, two-piece, made of PA for square tubes with an inserted steel thread
40
Threaded plugs made of PA for square tubes with overmoulded steel thread
CG
Threaded plugs made of PE for square tubes with short overmoulded threaded nut
CGM
Threaded plugs made of PE for square tubes with long overmoulded threaded nut
OG
Threaded plugs made of PA for flat oval tubes with injected high nut
RGMM
Threaded plugs made of PA for round tubes with nickel-plated brass thread
RGMS
Threaded plugs made of PA for round tubes with stainless steel thread
VGMM
Threaded plugs made of PA-GF for square tubes with nickel-plated brass thread
VGMS
Threaded plugs made of PA-GF for square tubes with stainless steel thread
VG/RE
Threaded plugs made of PA for rectangular tubes with injected plastic thread
RGL
Threaded plugs made of PA for round tubes with injection moulded plastic thread, two-parts
