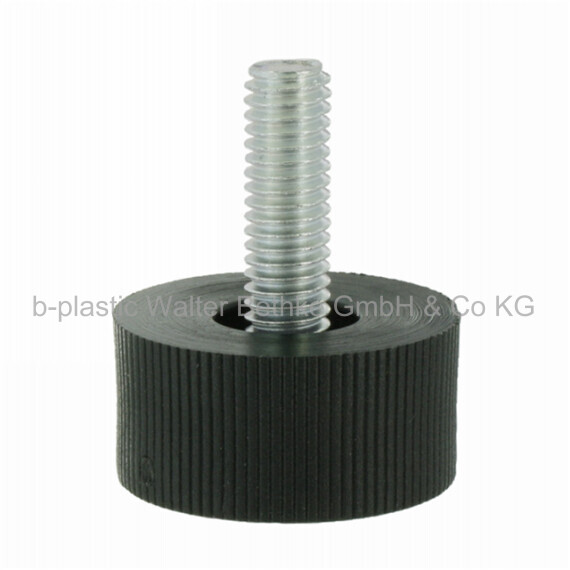

Adjusting screw - 70H
Adjusting screws with high knurled plastic base made of PA, thread bolt overmoulded
Configure your article. Enter multiple parameters to get the best result.

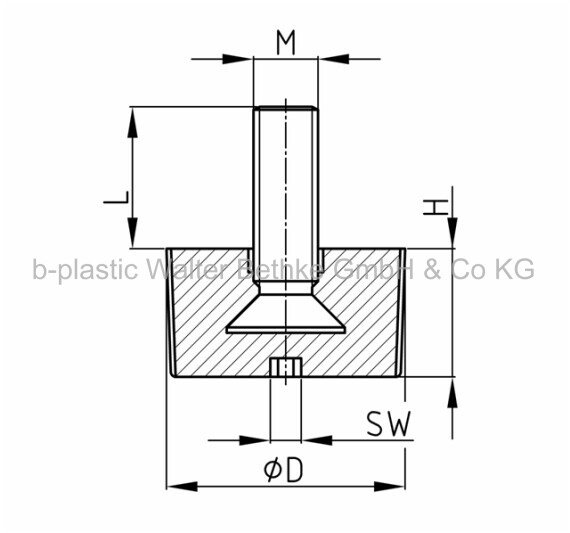

D in mm:
H in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. D
mmH
mmL
mmM WAF
mm- 70- 20 M6x20 H
70- 20 M6x20 H 19 12 12 M6 4 - 70- 20 M6x25 H
70- 20 M6x25 H 19 12 17 M6 4 - 70- 20 M6x30 H
70- 20 M6x30 H 19 12 22 M6 4 - 70- 20 M6x40 H
70- 20 M6x40 H 19 12 32 M6 4 - 70- 20 M6x50 H
70- 20 M6x50 H 19 12 42 M6 4 - 70- 25 M6x20 H
70- 25 M6x20 H 24 12 12 M6 4 - 70- 25 M6x25 H
70- 25 M6x25 H 24 12 17 M6 4 - 70- 25 M6x30 H
70- 25 M6x30 H 24 12 22 M6 4 - 70- 25 M6x40 H
70- 25 M6x40 H 24 12 32 M6 4 - 70- 25 M6x50 H
70- 25 M6x50 H 24 12 42 M6 4
Login to get price and discount information for all products.
Product variants
70
Adjusting screws with knurled plastic base made of PA and overmoulded threaded bolt
70 F
Adjusting screws with knurled plastic base made of PA, welded felt and overmoulded threaded bolt
70 ISK
Adjusting screws with knurled plastic base made of PA and hexagon inside the thread end, thread bolt overmoulded
70 F ISK
Adjusting screws with knurled plastic base made of PA, hexagon inside the thread end, welded felt and overmoulded threaded bolt
