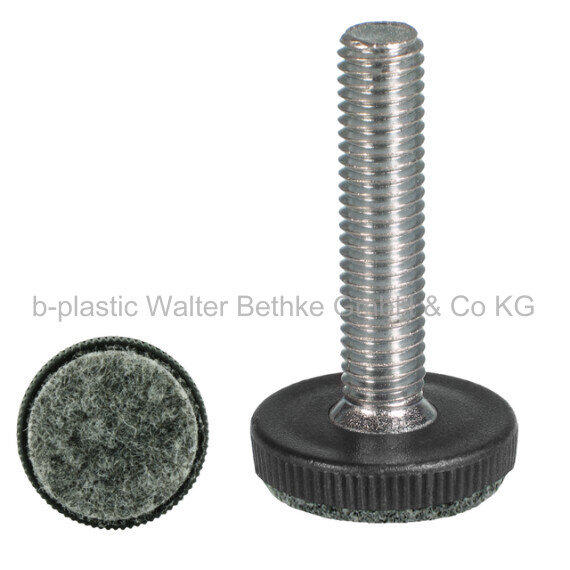

Adjusting screw - 71F
Adjusting screws with knurled plastic base made of PE, welded felt and overmoulded threaded bolt
Configure your article. Enter multiple parameters to get the best result.

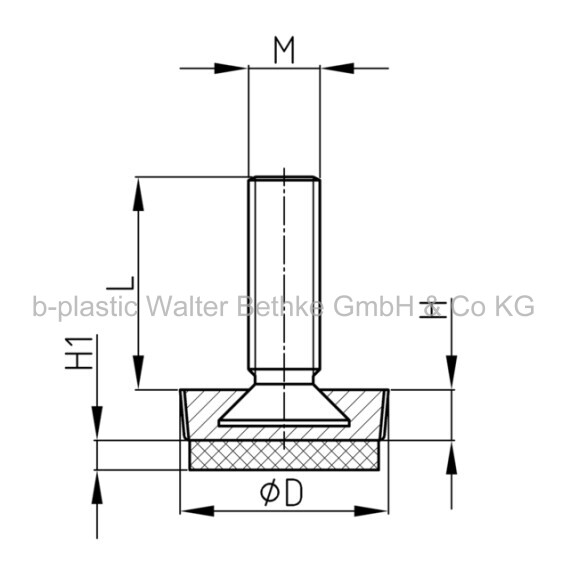

D in mm:
H in mm:
H1 in mm:
L in mm:
M:
Your article results:
Order-No. D
mmH
mmH1
mmL
mmM - 71F-15 M5x16
71F-15 M5x16 15 5 3 13 M5 - 71F-15 M5x20
71F-15 M5x20 15 5 3 17 M5 - 71F-15 M5x25
71F-15 M5x25 15 5 3 22 M5 - 71F-15 M5x30
71F-15 M5x30 15 5 3 27 M5 - 71F-15 M5x40
71F-15 M5x40 15 5 3 37 M5 - 71F-15 M5x50
71F-15 M5x50 15 5 3 47 M5 - 71F-15 M6x12
71F-15 M6x12 15 6 3 9 M6 - 71F-15 M6x16
71F-15 M6x16 15 6 3 13 M6 - 71F-15 M6x20
71F-15 M6x20 15 6 3 17 M6 - 71F-15 M6x25
71F-15 M6x25 15 6 3 22 M6 - 71F-15 M6x30
71F-15 M6x30 15 6 3 27 M6 - 71F-15 M6x40
71F-15 M6x40 15 6 3 37 M6 - 71F-15 M6x50
71F-15 M6x50 15 6 3 47 M6 - 71F-20 M5x12
71F-20 M5x12 20 5 3 9 M5 - 71F-20 M5x16
71F-20 M5x16 20 5 3 13 M5 - 71F-20 M5x20
71F-20 M5x20 20 5 3 17 M5 - 71F-20 M5x25
71F-20 M5x25 20 5 3 22 M5 - 71F-20 M5x30
71F-20 M5x30 20 5 3 27 M5 - 71F-20 M5x40
71F-20 M5x40 20 5 3 37 M5 - 71F-20 M5x50
71F-20 M5x50 20 5 3 47 M5 - 71F-20 M6x12
71F-20 M6x12 20 6 3 9 M6 - 71F-20 M6x14
71F-20 M6x14 20 6 3 11 M6 - 71F-20 M6x16
71F-20 M6x16 20 6 3 13 M6 - 71F-20 M6x20
71F-20 M6x20 20 6 3 17 M6 - 71F-20 M6x25
71F-20 M6x25 20 6 3 22 M6 - 71F-20 M6x30
71F-20 M6x30 20 6 3 27 M6 - 71F-20 M6x40
71F-20 M6x40 20 6 3 37 M6 - 71F-20 M6x50
71F-20 M6x50 20 6 3 47 M6 - 71F-20 M8x16
71F-20 M8x16 20 8 3 12 M8 - 71F-20 M8x20
71F-20 M8x20 20 8 3 16 M8 - 71F-20 M8x25
71F-20 M8x25 20 8 3 21 M8 - 71F-20 M8x30
71F-20 M8x30 20 8 3 26 M8 - 71F-20 M8x40
71F-20 M8x40 20 8 3 36 M8 - 71F-20 M8x50
71F-20 M8x50 20 8 3 46 M8 - 71F-20 M8x60
71F-20 M8x60 20 8 3 56 M8 - 71F-25 M5x16
71F-25 M5x16 25 5 3 13 M5 - 71F-25 M5x20
71F-25 M5x20 25 5 3 17 M5 - 71F-25 M5x25
71F-25 M5x25 25 5 3 22 M5 - 71F-25 M5x30
71F-25 M5x30 25 5 3 27 M5 - 71F-25 M5x40
71F-25 M5x40 25 5 3 37 M5 - 71F-25 M5x50
71F-25 M5x50 25 5 3 47 M5 - 71F-25 M6x12
71F-25 M6x12 25 6 3 9 M6 - 71F-25 M6x14
71F-25 M6x14 25 6 3 11 M6 - 71F-25 M6x16
71F-25 M6x16 25 6 3 13 M6 - 71F-25 M6x20
71F-25 M6x20 25 6 3 17 M6 - 71F-25 M6x25
71F-25 M6x25 25 6 3 22 M6 - 71F-25 M6x30
71F-25 M6x30 25 6 3 27 M6 - 71F-25 M6x40
71F-25 M6x40 25 6 3 37 M6 - 71F-25 M6x50
71F-25 M6x50 25 6 3 47 M6 - 71F-25 M8x16
71F-25 M8x16 25 8 3 12 M8 - 71F-25 M8x20
71F-25 M8x20 25 8 3 16 M8 - 71F-25 M8x25
71F-25 M8x25 25 8 3 21 M8 - 71F-25 M8x30
71F-25 M8x30 25 8 3 26 M8 - 71F-25 M8x40
71F-25 M8x40 25 8 3 36 M8 - 71F-25 M8x50
71F-25 M8x50 25 8 3 46 M8
