Adjustable foot - JTH

Adjustable feet made of PA with hexagonal adjusting screw for ground plates of group JTH BF/TPE/GP

Your session has expired, please log in again.
JTH A
JTH B
JTH
JTH A
JTH B
JTH A
JTH B
JTH
JTH A
JTH B
PDF data sheet
  • Screw: DIN 558-4.6-A2F (zinc-plated)
  • Base: Polyamide (PA)
black RAL 9005

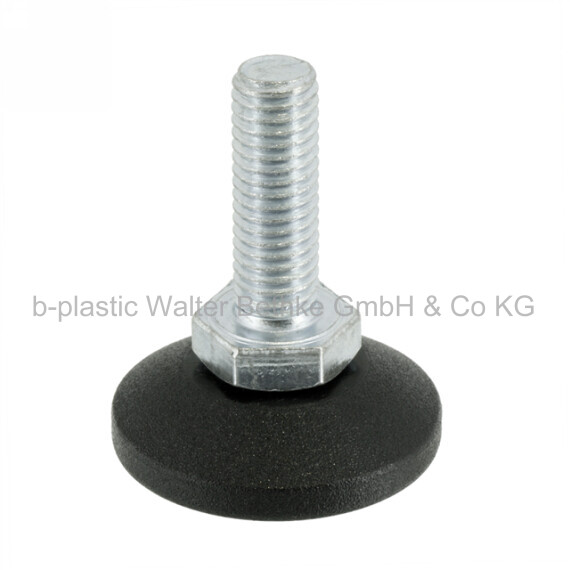

  • A = fixed foot

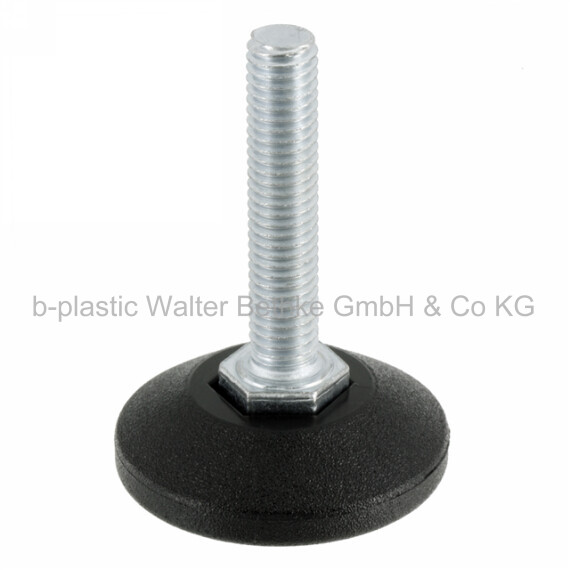

  • B = foot rotatable
  • The feet must be adjusted unloaded.
  • The adjustable feet are not suitable as load gliders.
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.

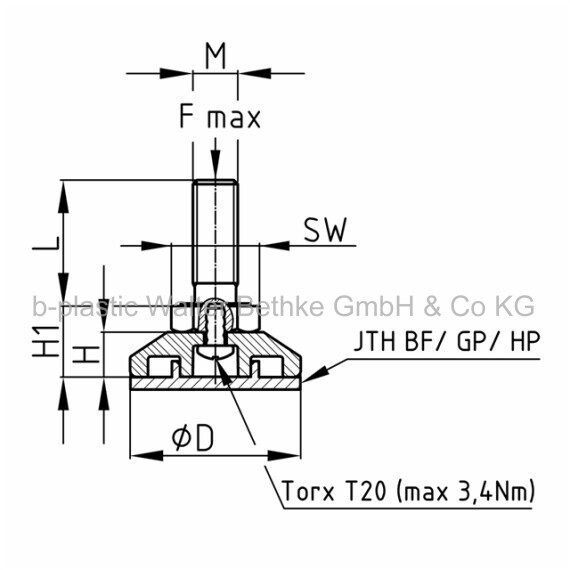

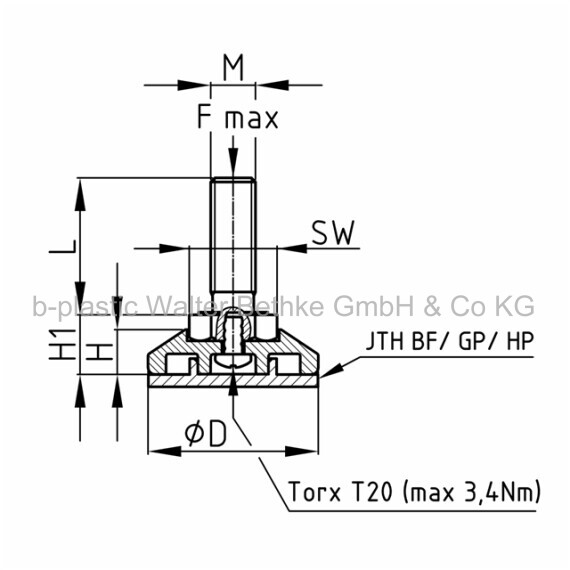

  • As mounting aid Torx T20 in the plate (max. torque 3.4 Nm)
  • * ) = Production with assembly aid Pozidriv 2 in the base (max. torque 3.4 Nm)
  • The applicability for automated assembly will be examined by the customer. In the case of standard delivery, there is no guarantee of suitability for automated assembly (range of torque, tolerance limits of thread and more).
  • Further thread lengths/sizes
  • Hexagon socket in thread end (please look at JTH ISK)
  • Plastic base in special colours according to RAL-System
