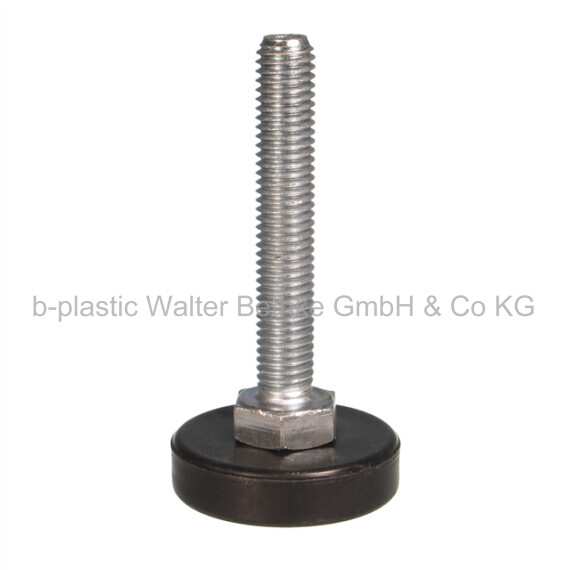

Adjustable foot - JPR ISK

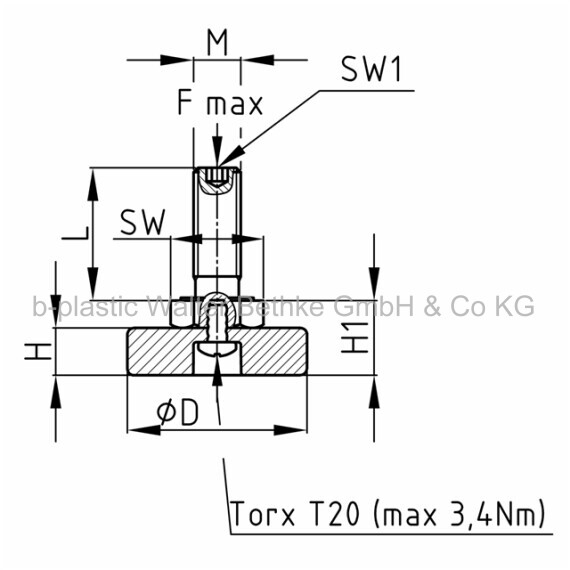

Adjustable feet with hexagonal adjusting screw and hexagon in the thread end, swivel base
Configure your article. Enter multiple parameters to get the best result.
D in mm:
F max. in kg:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
SW1 in mm:
Your article results:
Order-No. D
mmF max.
kgH
mmH1
mmL
mmM WAF
mmSW1
mm- JPR 20 / M8x20 ISK
JPR 20 / M8x20 ISK 20 400 10 16 20 M8 13 4 - JPR 20 / M8x30 ISK
JPR 20 / M8x30 ISK 20 400 10 16 30 M8 13 4 - JPR 20 / M8x40 ISK
JPR 20 / M8x40 ISK 20 400 10 16 40 M8 13 4 - JPR 20 / M8x50 ISK
JPR 20 / M8x50 ISK 20 400 10 16 50 M8 13 4 - JPR 20 / M8x60 ISK
JPR 20 / M8x60 ISK 20 400 10 16 60 M8 13 4 - JPR 20 / M8x70 ISK
JPR 20 / M8x70 ISK 20 400 10 16 70 M8 13 4 - JPR 20 / M8x80 ISK
JPR 20 / M8x80 ISK 20 400 10 16 80 M8 13 4 - JPR 20 / M8x90 ISK
JPR 20 / M8x90 ISK 20 400 10 16 90 M8 13 4 - JPR 20 / M8x100 ISK
JPR 20 / M8x100 ISK 20 400 10 16 100 M8 13 4 - JPR 20 / M10x20 ISK
JPR 20 / M10x20 ISK 20 550 10 16,5 20 M10 17 5 - JPR 20 / M10x30 ISK
JPR 20 / M10x30 ISK 20 550 10 16,5 30 M10 17 5 - JPR 20 / M10x40 ISK
JPR 20 / M10x40 ISK 20 550 10 16,5 40 M10 17 5 - JPR 20 / M10x50 ISK
JPR 20 / M10x50 ISK 20 550 10 16,5 50 M10 17 5 - JPR 20 / M10x60 ISK
JPR 20 / M10x60 ISK 20 550 10 16,5 60 M10 17 5 - JPR 20 / M10x70 ISK
JPR 20 / M10x70 ISK 20 550 10 16,5 70 M10 17 5 - JPR 20 / M10x80 ISK
JPR 20 / M10x80 ISK 20 550 10 16,5 80 M10 17 5 - JPR 20 / M10x90 ISK
JPR 20 / M10x90 ISK 20 550 10 16,5 90 M10 17 5 - JPR 20 / M10x100 ISK
JPR 20 / M10x100 ISK 20 550 10 16,5 100 M10 17 5 - JPR 25 / M8x20 ISK
JPR 25 / M8x20 ISK 25 400 10 16 20 M8 13 4 - JPR 25 / M8x30 ISK
JPR 25 / M8x30 ISK 25 400 10 16 30 M8 13 4 - JPR 25 / M8x40 ISK
JPR 25 / M8x40 ISK 25 400 10 16 40 M8 13 4 - JPR 25 / M8x50 ISK
JPR 25 / M8x50 ISK 25 400 10 16 50 M8 13 4 - JPR 25 / M8x60 ISK
JPR 25 / M8x60 ISK 25 400 10 16 60 M8 13 4 - JPR 25 / M8x70 ISK
JPR 25 / M8x70 ISK 25 400 10 16 70 M8 13 4 - JPR 25 / M8x80 ISK
JPR 25 / M8x80 ISK 25 400 10 16 80 M8 13 4 - JPR 25 / M8x90 ISK
JPR 25 / M8x90 ISK 25 400 10 16 90 M8 13 4 - JPR 25 / M8x100 ISK
JPR 25 / M8x100 ISK 25 400 10 16 100 M8 13 4 - JPR 25 / M10x20 ISK
JPR 25 / M10x20 ISK 25 550 10 16,5 20 M10 17 5 - JPR 25 / M10x30 ISK
JPR 25 / M10x30 ISK 25 550 10 16,5 30 M10 17 5 - JPR 25 / M10x40 ISK
JPR 25 / M10x40 ISK 25 550 10 16,5 40 M10 17 5 - JPR 25 / M10x50 ISK
JPR 25 / M10x50 ISK 25 550 10 16,5 50 M10 17 5 - JPR 25 / M10x60 ISK
JPR 25 / M10x60 ISK 25 550 10 16,5 60 M10 17 5 - JPR 25 / M10x70 ISK
JPR 25 / M10x70 ISK 25 550 10 16,5 70 M10 17 5 - JPR 25 / M10x80 ISK
JPR 25 / M10x80 ISK 25 550 10 16,5 80 M10 17 5 - JPR 25 / M10x90 ISK
JPR 25 / M10x90 ISK 25 550 10 16,5 90 M10 17 5 - JPR 25 / M10x100 ISK
JPR 25 / M10x100 ISK 25 550 10 16,5 100 M10 17 5 - JPR 30 / M8x20 ISK
JPR 30 / M8x20 ISK 30 400 10 16 20 M8 13 4 - JPR 30 / M8x30 ISK
JPR 30 / M8x30 ISK 30 400 10 16 30 M8 13 4 - JPR 30 / M8x40 ISK
JPR 30 / M8x40 ISK 30 400 10 16 40 M8 13 4 - JPR 30 / M8x50 ISK
JPR 30 / M8x50 ISK 30 400 10 16 50 M8 13 4 - JPR 30 / M8x60 ISK
JPR 30 / M8x60 ISK 30 400 10 16 60 M8 13 4 - JPR 30 / M8x70 ISK
JPR 30 / M8x70 ISK 30 400 10 16 70 M8 13 4 - JPR 30 / M8x80 ISK
JPR 30 / M8x80 ISK 30 400 10 16 80 M8 13 4 - JPR 30 / M8x90 ISK
JPR 30 / M8x90 ISK 30 400 10 16 90 M8 13 4 - JPR 30 / M8x100 ISK
JPR 30 / M8x100 ISK 30 400 10 16 100 M8 13 4 - JPR 30 / M 8x120 ISK
JPR 30 / M 8x120 ISK 30 400 10 16 120 M8 13 4 - JPR 30 / M10x20 ISK
JPR 30 / M10x20 ISK 30 550 10 16,5 20 M10 17 5 - JPR 30 / M10x30 ISK
JPR 30 / M10x30 ISK 30 550 10 16,5 30 M10 17 5 - JPR 30 / M10x40 ISK
JPR 30 / M10x40 ISK 30 550 10 16,5 40 M10 17 5 - JPR 30 / M10x50 ISK
JPR 30 / M10x50 ISK 30 550 10 16,5 50 M10 17 5 - JPR 30 / M10x60 ISK
JPR 30 / M10x60 ISK 30 550 10 16,5 60 M10 17 5 - JPR 30 / M10x70 ISK
JPR 30 / M10x70 ISK 30 550 10 16,5 70 M10 17 5 - JPR 30 / M10x80 ISK
JPR 30 / M10x80 ISK 30 550 10 16,5 80 M10 17 5 - JPR 30 / M10x90 ISK
JPR 30 / M10x90 ISK 30 550 10 16,5 90 M10 17 5 - JPR 30 / M10x100 ISK
JPR 30 / M10x100 ISK 30 550 10 16,5 100 M10 17 5 - JPR 40 / M8x20 ISK
JPR 40 / M8x20 ISK 40 400 10 16 20 M8 13 4 - JPR 40 / M8x30 ISK
JPR 40 / M8x30 ISK 40 400 10 16 30 M8 13 4 - JPR 40 / M8x40 ISK
JPR 40 / M8x40 ISK 40 400 10 16 40 M8 13 4 - JPR 40 / M8x50 ISK
JPR 40 / M8x50 ISK 40 400 10 16 50 M8 13 4 - JPR 40 / M8x60 ISK
JPR 40 / M8x60 ISK 40 400 10 16 60 M8 13 4 - JPR 40 / M8x70 ISK
JPR 40 / M8x70 ISK 40 400 10 16 70 M8 13 4 - JPR 40 / M8x80 ISK
JPR 40 / M8x80 ISK 40 400 10 16 80 M8 13 4 - JPR 40 / M8x90 ISK
JPR 40 / M8x90 ISK 40 400 10 16 90 M8 13 4 - JPR 40 / M8x100 ISK
JPR 40 / M8x100 ISK 40 400 10 16 100 M8 13 4 - JPR 40 / M10x20 ISK
JPR 40 / M10x20 ISK 40 550 10 16,5 20 M10 17 5 - JPR 40 / M10x30 ISK
JPR 40 / M10x30 ISK 40 550 10 16,5 30 M10 17 5 - JPR 40 / M10x40 ISK
JPR 40 / M10x40 ISK 40 550 10 16,5 40 M10 17 5 - JPR 40 / M10x50 ISK
JPR 40 / M10x50 ISK 40 550 10 16,5 50 M10 17 5 - JPR 40 / M10x60 ISK
JPR 40 / M10x60 ISK 40 550 10 16,5 60 M10 17 5 - JPR 40 / M10x70 ISK
JPR 40 / M10x70 ISK 40 550 10 16,5 70 M10 17 5 - JPR 40 / M10x80 ISK
JPR 40 / M10x80 ISK 40 550 10 16,5 80 M10 17 5 - JPR 40 / M10x90 ISK
JPR 40 / M10x90 ISK 40 550 10 16,5 90 M10 17 5 - JPR 40 / M10x100 ISK
JPR 40 / M10x100 ISK 40 550 10 16,5 100 M10 17 5
