Adjusting screw - TV

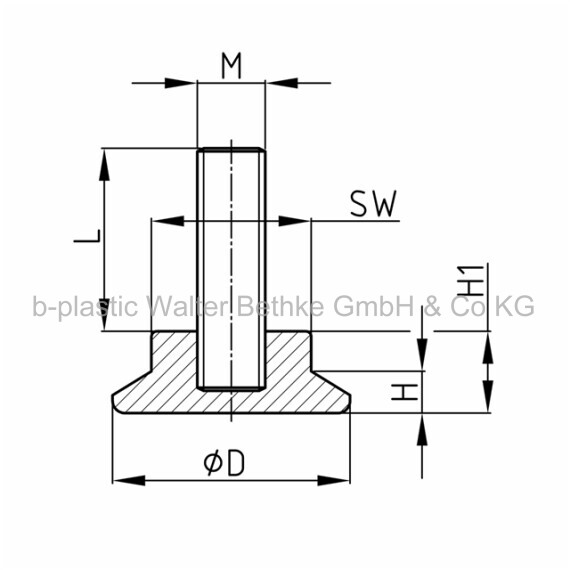

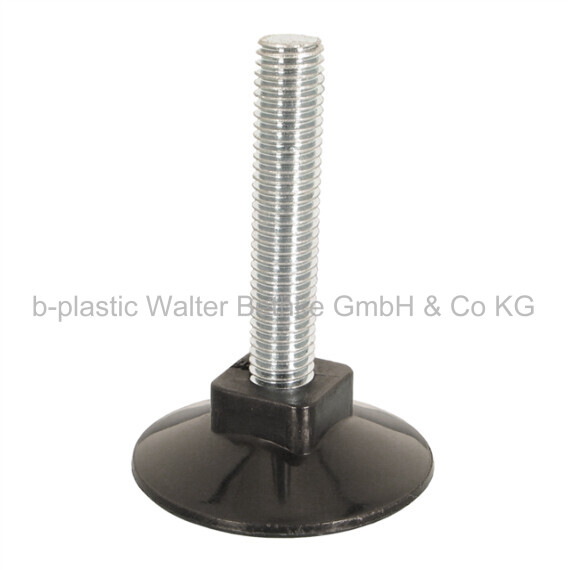

Adjustable screws with round plastic base made of PA and moulded square, thread bolt overmoulded
Configure your article. Enter multiple parameters to get the best result.
D in mm:
H in mm:
H1 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. D
mmH
mmH1
mmL
mmM WAF
mm- TV 30 M8x10
TV 30 M8x10 31 15 10 M8 17,3 - TV 30 / M8x15
TV 30 / M8x15 31 7 15 15 M8 17,3 - TV 30 / M8x20
TV 30 / M8x20 31 7 15 20 M8 17,3 - TV 30 / M8x30
TV 30 / M8x30 31 7 15 30 M8 17,3 - TV 30 / M8x50
TV 30 / M8x50 31 7 15 50 M8 17,3 - TV 30 / M8x70
TV 30 / M8x70 31 7 15 70 M8 17,3 - TV 30 M10x15
TV 30 M10x15 30 14 15 M10 18 - TV 30 / M10x20
TV 30 / M10x20 30 14 20 M10 18 - TV 30 / M10x30
TV 30 / M10x30 30 14 30 M10 18 - TV 30 / M10x40
TV 30 / M10x40 30 14 40 M10 18 - TV 30 / M10x50
TV 30 / M10x50 30 14 50 M10 18 - TV 30 M10x50 ISK
TV 30 M10x50 ISK 30 14 50 M10 18 - TV 30 / M10x60
TV 30 / M10x60 30 14 60 M10 18 - TV 30 / M10x70
TV 30 / M10x70 30 14 70 M10 18 - TV 30 / M10x100
TV 30 / M10x100 30 14 100 M10 18 - TV 30 / M10x140
TV 30 / M10x140 30 14 140 M10 18 - TV 47 M8x10
TV 47 M8x10 46 15 10 M8 18 - TV 47 M8x15
TV 47 M8x15 46 15 15 M8 18 - TV 47 / M8x20
TV 47 / M8x20 46 15 20 M8 18 - TV 47 / M8x30
TV 47 / M8x30 46 15 30 M8 18 - TV 47 / M8x50
TV 47 / M8x50 46 15 50 M8 18 - TV 47 / M8x70
TV 47 / M8x70 46 15 70 M8 18 - TV 47 / M10x20
TV 47 / M10x20 46 15 20 M10 18 - TV 47 / M10x30
TV 47 / M10x30 46 15 30 M10 18 - TV 47 / M10x40
TV 47 / M10x40 46 15 40 M10 18 - TV 47 / M10x50
TV 47 / M10x50 46 15 50 M10 18 - TV 47 / M10x60
TV 47 / M10x60 46 15 60 M10 18 - TV 47 / M10x70
TV 47 / M10x70 46 15 70 M10 18 - TV 47 / M10x100
TV 47 / M10x100 46 15 100 M10 18 - TV 47 / M10x140
TV 47 / M10x140 46 15 140 M10 18
