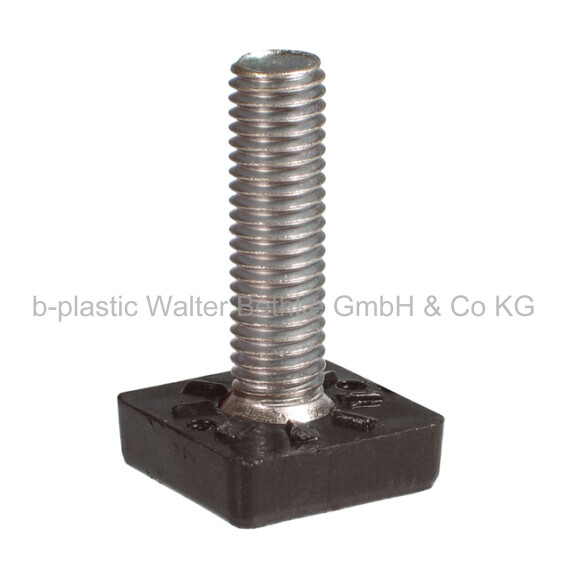

Adjusting screw - LV
Adjusting screws with square plastic base made of PE, threaded bolt overmoulded
Configure your article. Enter multiple parameters to get the best result.

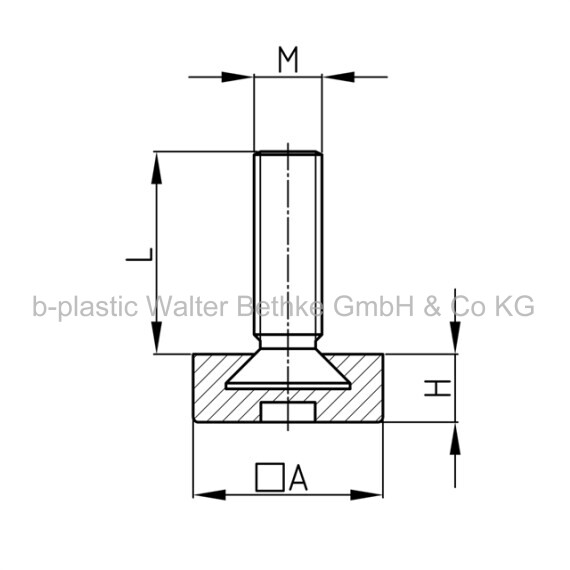

A in mm:
H in mm:
L in mm:
M:
Your article results:
Order-No. A
mmH
mmL
mmM - LV 20 / M8x20
LV 20 / M8x20 20 6,3 16 M8 - LV 20 / M8x30
LV 20 / M8x30 20 6,3 26 M8 - LV 20 / M8x40
LV 20 / M8x40 20 6,3 36 M8 - LV 20 / M8x50
LV 20 / M8x50 20 6,3 46 M8 - LV 25 / M8x20
LV 25 / M8x20 25 8 16 M8 - LV 25 / M8x30
LV 25 / M8x30 25 8 26 M8 - LV 25 / M8x40
LV 25 / M8x40 25 8 36 M8 - LV 25 / M8x50
LV 25 / M8x50 25 8 46 M8 - LV 25 / M10x20
LV 25 / M10x20 25 8 15 M10 - LV 25 / M10x30
LV 25 / M10x30 25 8 25 M10 - LV 25 / M10x40
LV 25 / M10x40 25 8 35 M10 - LV 25 / M10x50
LV 25 / M10x50 25 8 45 M10 - LV 30 / M10x20
LV 30 / M10x20 30 8 15 M10 - LV 30 / M10x30
LV 30 / M10x30 30 8 25 M10 - LV 30 / M10x40
LV 30 / M10x40 30 8 35 M10 - LV 30 / M10x50
LV 30 / M10x50 30 8 45 M10 - LV 40 / M8x20
LV 40 / M8x20 40 8 16 M8 - LV 40 / M8x30
LV 40 / M8x30 40 8 26 M8 - LV 40 / M8x40
LV 40 / M8x40 40 8 36 M8 - LV 40 / M8x50
LV 40 / M8x50 40 8 46 M8 - LV 40 / M10x20
LV 40 / M10x20 40 8 15 M10 - LV 40 / M10x30
LV 40 / M10x30 40 8 25 M10 - LV 40 / M10x40
LV 40 / M10x40 40 8 35 M10 - LV 40 / M10x50
LV 40 / M10x50 40 8 45 M10
