Screw corner connector - SERM2

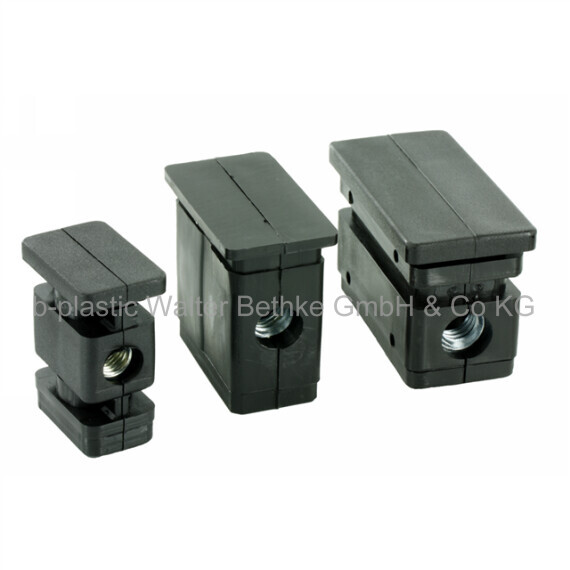

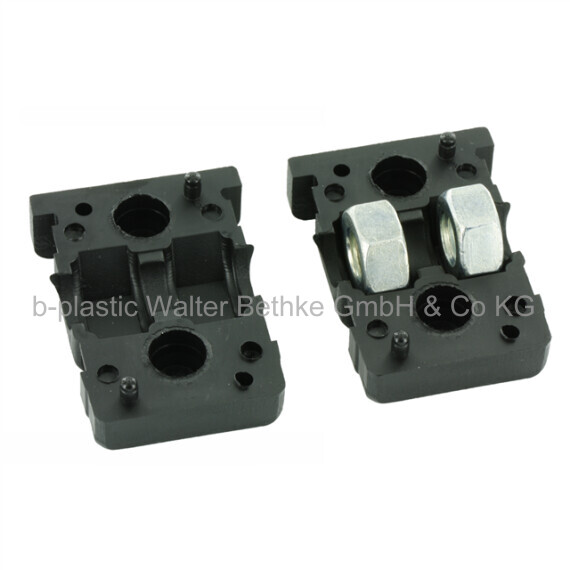

Screw corner connectors made of PA with collar for rectangular tubes and two bright galvanized hexagon steel nuts
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

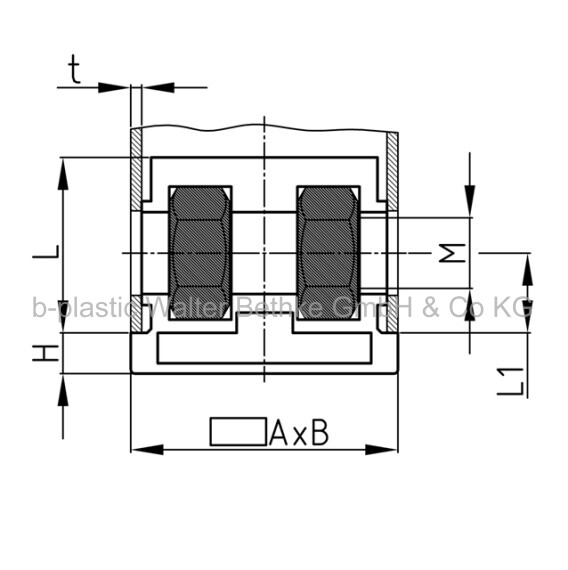

A in mm:
B in mm:
H in mm:
L in mm:
L1 in mm:
M:
t in mm:
Your article results:
Order-No. A
mmB
mmH
mmL
mmL1
mmM t
mm- SERM2 30x20x1,5 M8
SERM2 30x20x1,5 M8 30 20 4 41 15 M8 1,5 - SERM2 30x20x2 M8
SERM2 30x20x2 M8 30 20 4 40 15 M8 2 - SERM2 40x20x1,5 M8
SERM2 40x20x1,5 M8 40 20 2 43 30 M8 1,5 - SERM2 40x25x1,5 M8
SERM2 40x25x1,5 M8 40 25 1,8 42,8 30 M8 1,5 - SERM2 40x30x1,5 M8
SERM2 40x30x1,5 M8 40 30 2 44 30 M8 1,5 - SERM2 40x30x1,5 M10
SERM2 40x30x1,5 M10 40 30 2 44 30 M10 1,5 - SERM2 45x25x2 M10
SERM2 45x25x2 M10 45 25 2,5 41,5 20 M10 2 - SERM2 50x20x1,5 M8
SERM2 50x20x1,5 M8 50 20 1,8 42,8 30 M8 1,5 - SERM2 50x24,2x2 M10
SERM2 50x24,2x2 M10 50 24,2 2,8 34,8 20 M10 2 - SERM2 50x30x1,5 M10
SERM2 50x30x1,5 M10 50 30 2 44 30 M10 1,5 - SERM2 50x30x2 M10
SERM2 50x30x2 M10 50 30 6 37 20 M10 2 - SERM2 60x30x1,5 M10
SERM2 60x30x1,5 M10 60 30 6 36,5 20 M10 1,5 - SERM2 60x30x2 M10
SERM2 60x30x2 M10 60 30 5 38 20 M10 2 - SERM2 60x30x2,5 M10
SERM2 60x30x2,5 M10 60 30 6 37,5 20 M10 2,5
