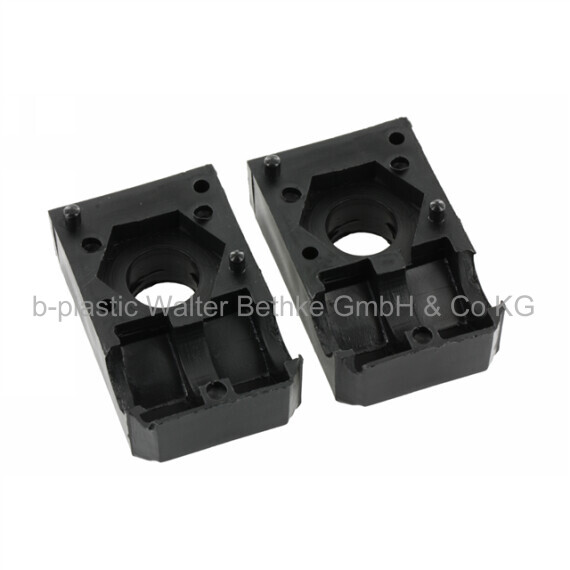

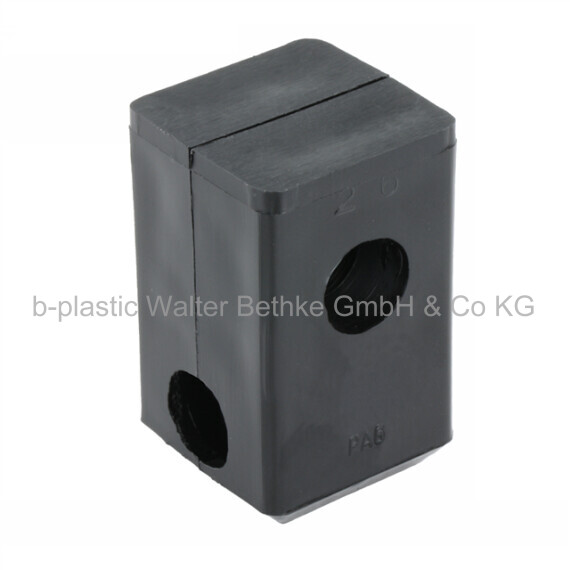

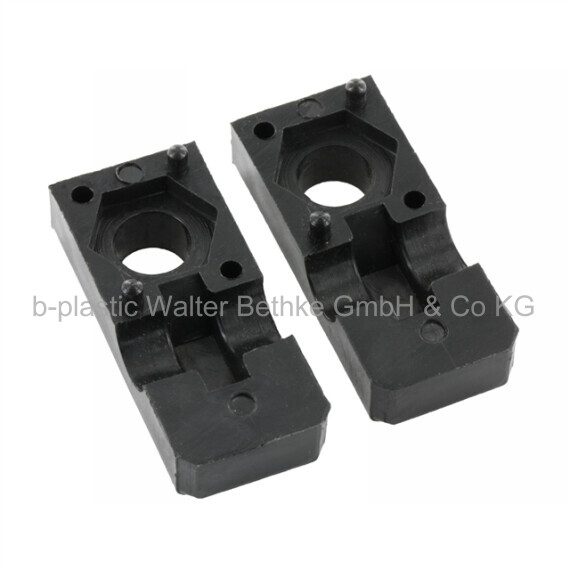

Screw corner connector - SEVV
Screw corner connectors made of PA without collar for square tubes, hexagon nuts inserted
Configure your article. Enter multiple parameters to get the best result.

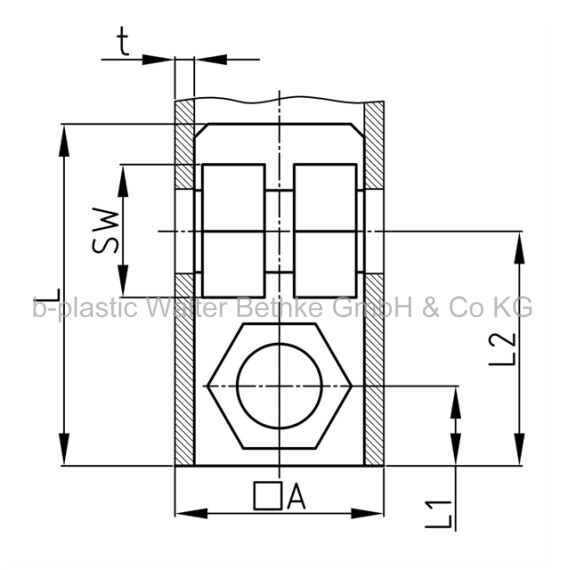

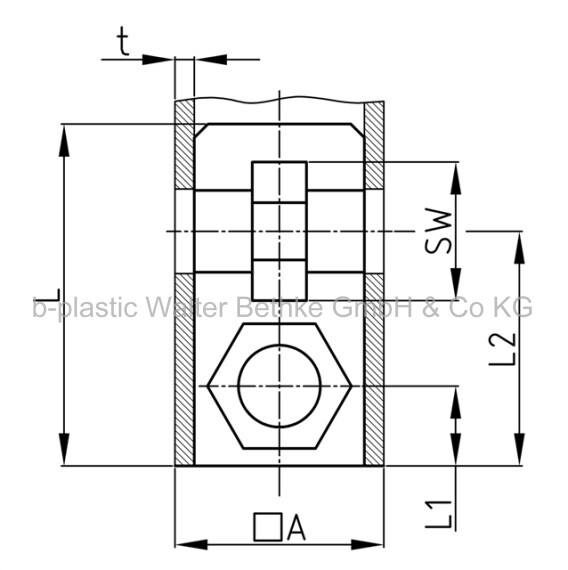

L in mm:
L1 in mm:
L2 in mm:
WAF in mm:
SW1 in mm:
A in mm:
t in mm:
Type:
Your article results:
Order-No. L
mmL1
mmL2
mmWAF
mmSW1
mmA
mmt
mmType - SEVV 20x1 M8
SEVV 20x1 M8 42 27 10 13 13 20 1 2 - SEVV 25x2 M8
SEVV 25x2 M8 43 28 12,5 13 13 25 2 2 - SEVV 30x2 M10
SEVV 30x2 M10 40 33 15 17 17 30 2 1
Login to get price and discount information for all products.
Product variants
SEVVM
Screw corner connectors made of PA without collar for square tubes, with bright galvanized hexagon nut
SEVVM2
Screw corner connectors made of PA without collar for square tubes, with two bright galvanized hexagon nuts
SEVVM3
Screw corner connectors made of PA without collar for square tubes, with three bright galvanized hexagon nuts
SEVVMH
Screw corner connectors made of PA without collar for square tubes, with bright galvanized hexagon nut (rear)
