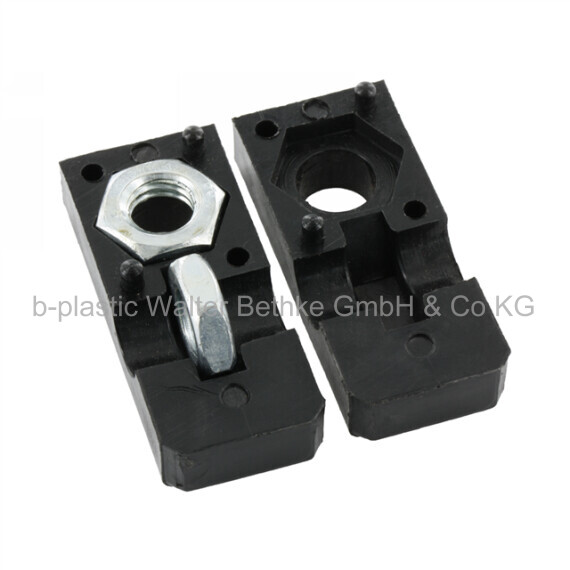

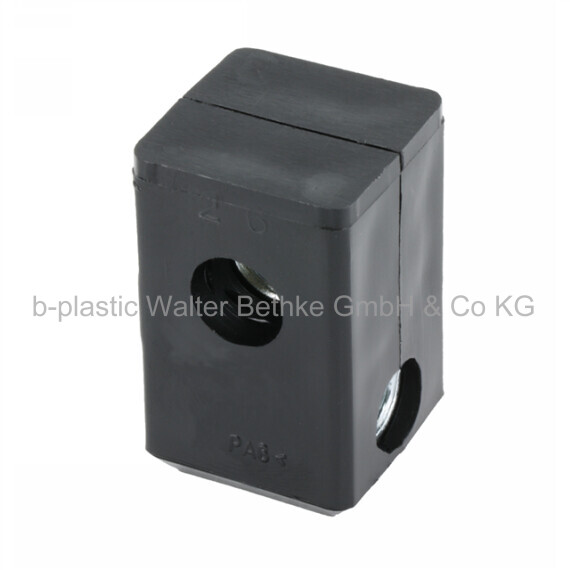

Screw corner connector - SEVVM2
Screw corner connectors made of PA without collar for square tubes, with two bright galvanized hexagon nuts
Configure your article. Enter multiple parameters to get the best result.

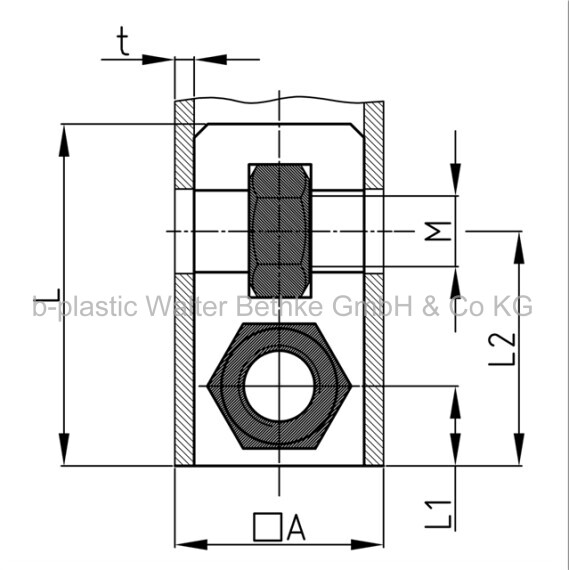

A in mm:
L in mm:
L1 in mm:
L2 in mm:
M:
t in mm:
Your article results:
Order-No. A
mmL
mmL1
mmL2
mmM t
mm- SEVVM2 20x1 M8
SEVVM2 20x1 M8 20 42 27 10 M8 1 - SEVVM2 25x2 M8
SEVVM2 25x2 M8 25 43 28 12,5 M8 2
Login to get price and discount information for all products.
Product variants
SEVV
Screw corner connectors made of PA without collar for square tubes, hexagon nuts inserted
SEVVM
Screw corner connectors made of PA without collar for square tubes, with bright galvanized hexagon nut
SEVVM3
Screw corner connectors made of PA without collar for square tubes, with three bright galvanized hexagon nuts
SEVVMH
Screw corner connectors made of PA without collar for square tubes, with bright galvanized hexagon nut (rear)
