Screw corner connector - SEVVMH

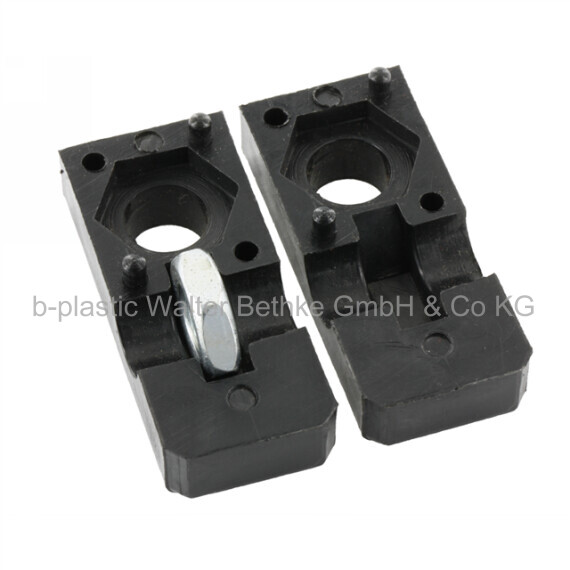

Screw corner connectors made of PA without collar for square tubes, with bright galvanized hexagon nut (rear)
Configure your article. Enter multiple parameters to get the best result.

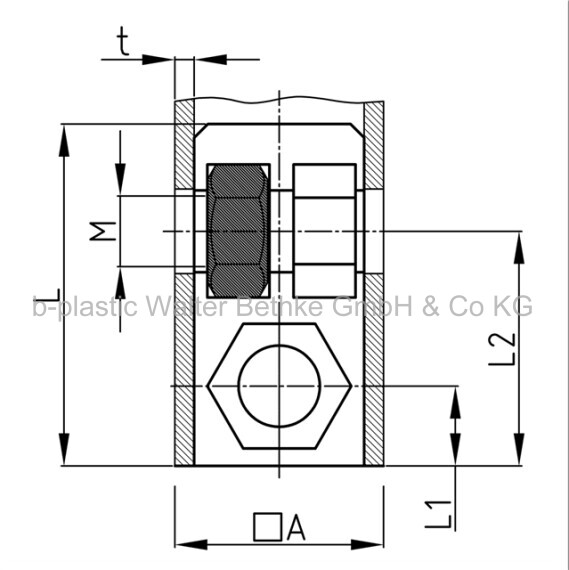

A in mm:
L in mm:
L1 in mm:
L2 in mm:
M:
WAF in mm:
t in mm:
Type:
Your article results:
Order-No. A
mmL
mmL1
mmL2
mmM WAF
mmt
mmType - SEVVMH 20x1 M8
SEVVMH 20x1 M8 20 42 27 10 M8 13 1 2 - SEVVMH 25x2 M8
SEVVMH 25x2 M8 25 43 28 12,5 M8 13 2 1 - SEVVMH 30x2 M10
SEVVMH 30x2 M10 30 40 33 15 M10 17 2 1
Login to get price and discount information for all products.
Product variants
SEVV
Screw corner connectors made of PA without collar for square tubes, hexagon nuts inserted
SEVVM
Screw corner connectors made of PA without collar for square tubes, with bright galvanized hexagon nut
SEVVM2
Screw corner connectors made of PA without collar for square tubes, with two bright galvanized hexagon nuts
SEVVM3
Screw corner connectors made of PA without collar for square tubes, with three bright galvanized hexagon nuts
