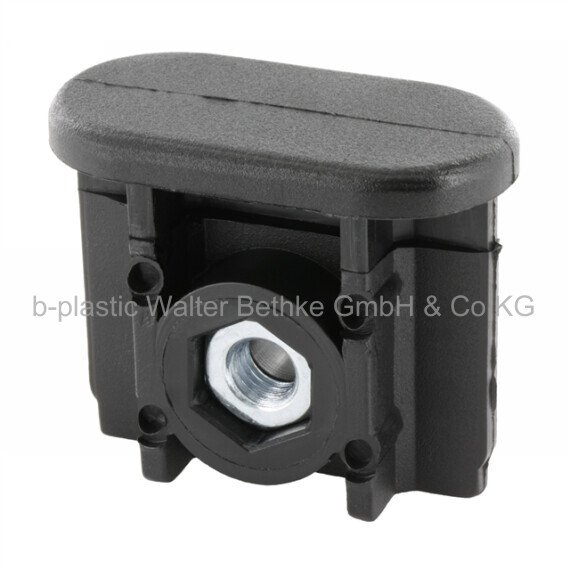

Screw corner connectors with collar made of PA for oval tubes and bright galvanized hexagon nut

Your session has expired, please log in again.
SVBOM
SVBOM
SVBOM
SVBOM
SVBOM
SVBOM
SVBOM
SVBOM
SVBOM
SVBOM
PDF data sheet
  • Base body: Polyamide (PA)
  • Thread: zinc-plated steel
black
  • For tubes lying flat
  • Collar for end face pipe termination
  • Fixing of wheels or adjustable feet of horizontally lying tubes.
  • Order-related production for individual article sizes! Please ask for minimum quantity.
  • DIN 985 = with lock nut made of steel, bright zinc plated

Configure your article. Enter multiple parameters to get the best result.

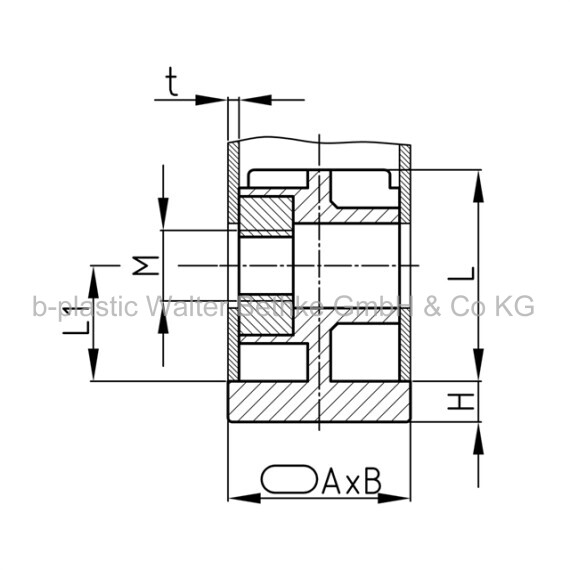

A in mm:

B in mm:

H in mm:

L in mm:

L1 in mm:

M:

t in mm:

Your article results:

  • Order-No. A
    mm    		B
    mm    		H
    mm    		L
    mm    		L1
    mm    		Mt
    mm
  • SVBOM 30x15x1,5 M8
    SVBOM 30x15x1,5 M8 301553015M81,5
  • SVBOM 50x25x2 M8
    SVBOM 50x25x2 M8 502553622M82
  • SVBOM 50x25x2 M8 DIN 985
    SVBOM 50x25x2 M8 DIN 985 502553622M82
  • SVBOM 50x25x2 M10
    SVBOM 50x25x2 M10 502553622M102
  • SVBOM 60x30x2 M10
    SVBOM 60x30x2 M10 603053622M102
