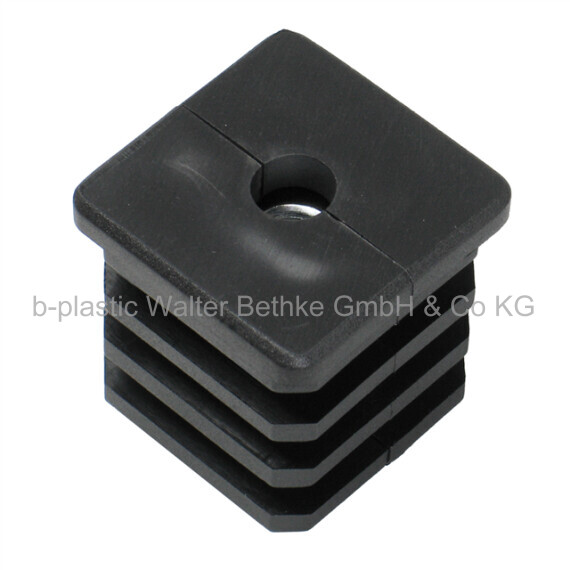

Assembled expander plug - EBQMH

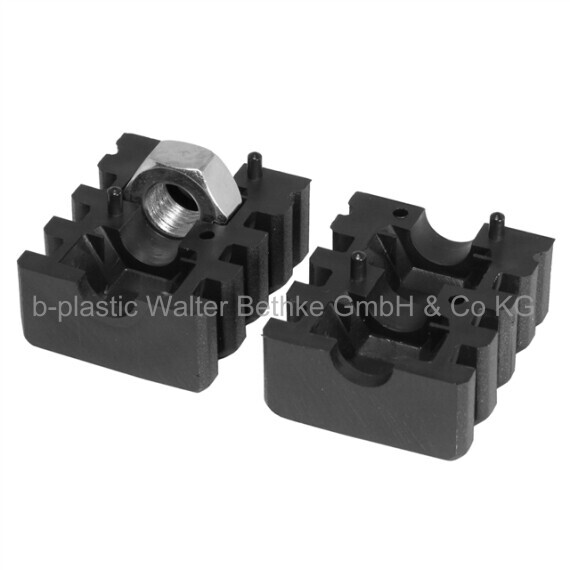

Assembled expander plugs with collar made of PA for square tubes with one hexagon nut (rear)
Configure your article. Enter multiple parameters to get the best result.

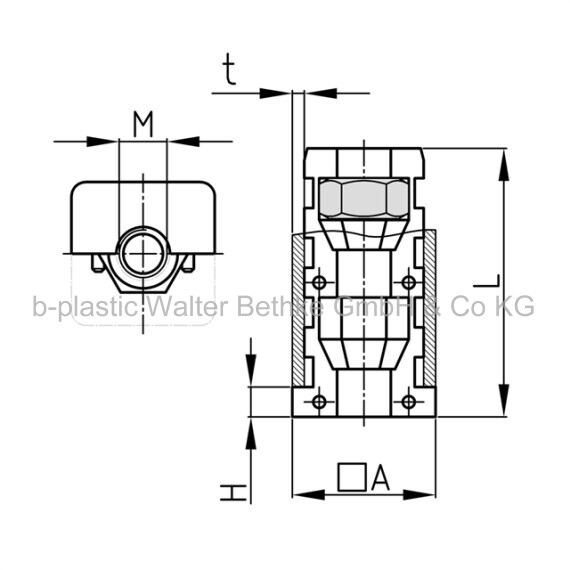

A in mm:
H in mm:
L in mm:
M:
t in mm:
F max. in kg:
Your article results:
Order-No. A
mmH
mmL
mmM t
mmF max.
kg- EBQMH 20x20x1,5 /M6
EBQMH 20x20x1,5 /M6 20 5 42 M6 1,5 150 - EBQMH 20x20x1,5 /M8
EBQMH 20x20x1,5 /M8 20 5 42 M8 1,5 300 - EBQMH 20x20x1,5 /M8 OL
EBQMH 20x20x1,5 /M8 OL 20 5 42 M8 1,5 300 - EBQMH 22x22x1,5 /M8
EBQMH 22x22x1,5 /M8 22 5 40 M8 1,5 300 - EBQMH 25x25x1,5 /M8
EBQMH 25x25x1,5 /M8 25 5 41 M8 1,5 300 - EBQMH 25x25x1,5 /M10
EBQMH 25x25x1,5 /M10 25 5 42 M10 1,5 300 - EBQMH 25x25x1,5 /M12
EBQMH 25x25x1,5 /M12 25 5 37 M12 1,5 300 - EBQMH 30x30x1,5 /M8
EBQMH 30x30x1,5 /M8 30 5 42 M8 1,5 300 - EBQMH 30x30x1,5 /M10
EBQMH 30x30x1,5 /M10 30 5 42 M10 1,5 300 - EBQMH 30x30x2 /M8
EBQMH 30x30x2 /M8 30 5 42 M8 2 300 - EBQMH 30x30x2 /M10
EBQMH 30x30x2 /M10 30 5 42 M10 2 300 - EBQMH 31,75x31,75x1,2-1,6/M10
EBQMH 31,75x31,75x1,2-1,6/M10 31,75 5 37 M10 1,2-1,6 300 - EBQMH 32x32x2 /M10
EBQMH 32x32x2 /M10 32 5 37 M10 2 300 - EBQMH 35x35x1,6 /M10
EBQMH 35x35x1,6 /M10 35 5 37 M10 1,6 300 - EBQMH 35x35x2 /M10
EBQMH 35x35x2 /M10 35 5 42 M10 2 300 - EBQMH 38x38x1,5 /M10
EBQMH 38x38x1,5 /M10 38 5 36 M10 1,5 300 - EBQMH 38x38x1,5 /M12
EBQMH 38x38x1,5 /M12 38 5 36 M12 1,5 300 - EBQMH 40x40x1,5 /M10
EBQMH 40x40x1,5 /M10 40 5 42 M10 1,5 300 - EBQMH 40x40x2 /M10
EBQMH 40x40x2 /M10 40 5 42 M10 2 300 - EBQMH 40x40x2 /M10 LG
EBQMH 40x40x2 /M10 LG 40 5 88 M10 2 300 - EBQMH 40x40x2 /M12
EBQMH 40x40x2 /M12 40 5 40 M12 2 300 - EBQMH 40x40x3 /M10
EBQMH 40x40x3 /M10 40 5 37 M10 3 300 - EBQMH 50x50x1,5 /M10
EBQMH 50x50x1,5 /M10 50 5 37 M10 1,5 300 - EBQMH 50x50x1,5 /M12
EBQMH 50x50x1,5 /M12 50 5 37 M12 1,5 300 - EBQMH 50x50x2 /M12
EBQMH 50x50x2 /M12 50 5 37 M12 2 300 - EBQMH 50x50x2,5-3 /M12
EBQMH 50x50x2,5-3 /M12 50 5 39 M12 2,5-3 300 - EBQMH 50,8x50,8x1,6 /M10
EBQMH 50,8x50,8x1,6 /M10 50,8 5 38 M10 1,6 300 - EBQMH 60x60x2 /M10
EBQMH 60x60x2 /M10 60 5 38 M10 2 300 - EBQMH 60x60x2,5 /M10
EBQMH 60x60x2,5 /M10 60 5 41 M10 2,5 300 - EBQMH 70x70x2 /M10
EBQMH 70x70x2 /M10 70 5 42 M10 2 300
Login to get price and discount information for all products.
Product variants
EBQ
Assembled expander plugs with collar made of PA for square tubes, hexagon nuts or screws plugged
EBQMV
Assembled expander plugs with collar made of PA for square tubes with one hexagon nut (in the front)
EBQM2
Assembled expander plugs with collar made of PA for square tubes with two hexagon nuts
