Assembled expander plug - EBQMV

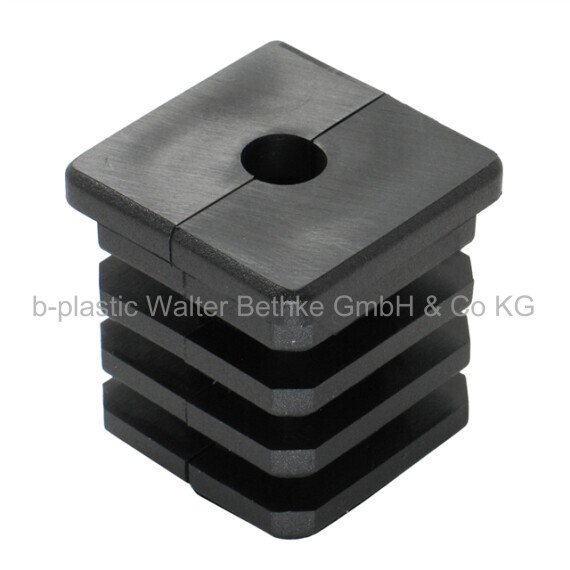

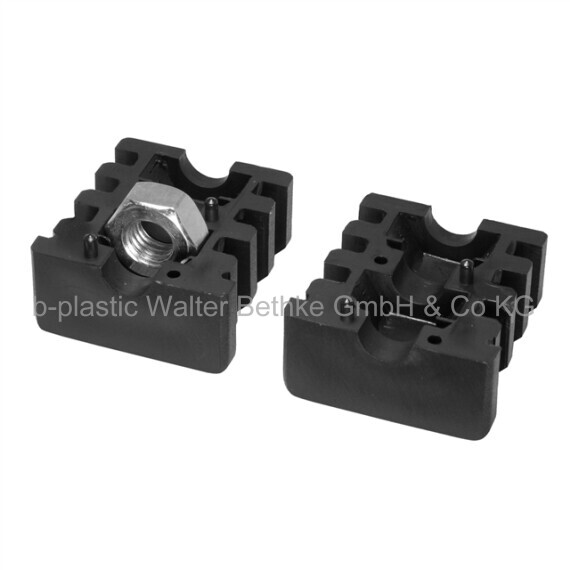

Assembled expander plugs with collar made of PA for square tubes with one hexagon nut (in the front)
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

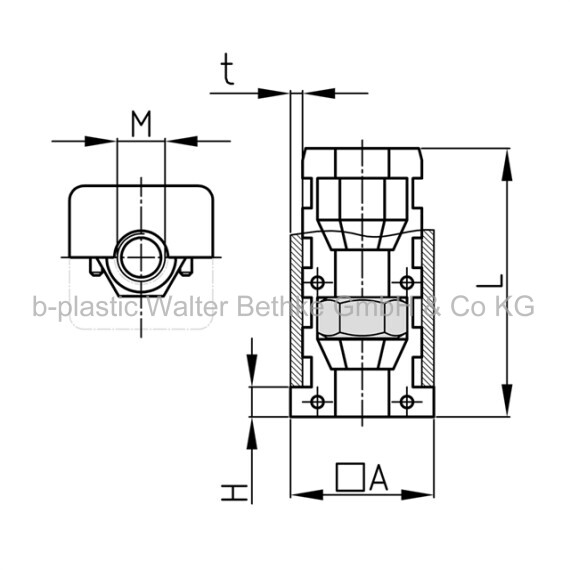

A in mm:
H in mm:
L in mm:
M:
t in mm:
F max. in kg:
Your article results:
Order-No. A
mmH
mmL
mmM t
mmF max.
kg- EBQMV 20x20x1,5 /M 6
EBQMV 20x20x1,5 /M 6 20 0,5 42 M6 1,5 150 - EBQMV 20x20x1,5 /M8
EBQMV 20x20x1,5 /M8 20 5 42 M8 1,5 300 - EBQMV 20x20x1,5 /M8 OL
EBQMV 20x20x1,5 /M8 OL 20 5 42 M8 1,5 300 - EBQMV 22x22x1,5 /M8
EBQMV 22x22x1,5 /M8 22 5 40 M8 1,5 300 - EBQMV 25x25x1,5 /M8
EBQMV 25x25x1,5 /M8 25 5 41 M8 1,5 300 - EBQMV 25x25x1,5 /M10
EBQMV 25x25x1,5 /M10 25 5 42 M10 1,5 300 - EBQMV 25x25x1,5 /M12
EBQMV 25x25x1,5 /M12 25 5 37 M12 1,5 300 - EBQMV 30x30x1,5 /M8
EBQMV 30x30x1,5 /M8 30 5 42 M8 1,5 300 - EBQMV 30x30x1,5 /M10
EBQMV 30x30x1,5 /M10 30 5 42 M10 1,5 300 - EBQMV 30x30x2 /M8
EBQMV 30x30x2 /M8 30 5 42 M8 2 300 - EBQMV 30x30x2 /M10
EBQMV 30x30x2 /M10 30 5 42 M10 2 300 - EBQMV 31,75x31,75x1,2-1,6/M10
EBQMV 31,75x31,75x1,2-1,6/M10 31,75 5 37 M10 1,2-1,6 300 - EBQMV 32x32x2 /M10
EBQMV 32x32x2 /M10 32 5 37 M10 2 300 - EBQMV 35x35x1,6 /M10
EBQMV 35x35x1,6 /M10 35 5 37 M10 1,6 300 - EBQMV 35x35x2 /M10
EBQMV 35x35x2 /M10 35 5 42 M10 2 300 - EBQMV 38x38x1,5 /M10
EBQMV 38x38x1,5 /M10 38 5 36 M10 1,5 300 - EBQMV 38x38x1,5 /M12
EBQMV 38x38x1,5 /M12 38 5 36 M12 1,5 300 - EBQMV 40x40x1,5 /M10
EBQMV 40x40x1,5 /M10 40 5 42 M10 1,5 300 - EBQMV 40x40x2 /M10
EBQMV 40x40x2 /M10 40 5 42 M10 2 300 - EBQMV 40x40x2 /M10 LG
EBQMV 40x40x2 /M10 LG 40 5 88 M10 2 300 - EBQMV 40x40x2 /M12
EBQMV 40x40x2 /M12 40 5 40 M12 2 300 - EBQMV 40x40x3 /M10
EBQMV 40x40x3 /M10 40 5 37 M10 3 300 - EBQMV 50x50x1,5 /M10
EBQMV 50x50x1,5 /M10 50 5 37 M10 1,5 300 - EBQMV 50x50x1,5 /M12
EBQMV 50x50x1,5 /M12 50 5 37 M12 1,5 300 - EBQMV 50x50x2 /M12
EBQMV 50x50x2 /M12 50 5 37 M12 2 300 - EBQMV 50x50x2,5-3 /M12
EBQMV 50x50x2,5-3 /M12 50 5 39 M12 2,5-3 300 - EBQMV 50,8x50,8x1,6 /M10
EBQMV 50,8x50,8x1,6 /M10 50,8 5 38 M10 1,6 300 - EBQMV 60x60x2 /M10
EBQMV 60x60x2 /M10 60 5 38 M10 2 300 - EBQMV 60x60x2,5 /M10
EBQMV 60x60x2,5 /M10 60 5 41 M10 2,5 300 - EBQMV 70x70x2 /M10
EBQMV 70x70x2 /M10 70 5 42 M10 2 300
