Assembled expander connector - EVRMV

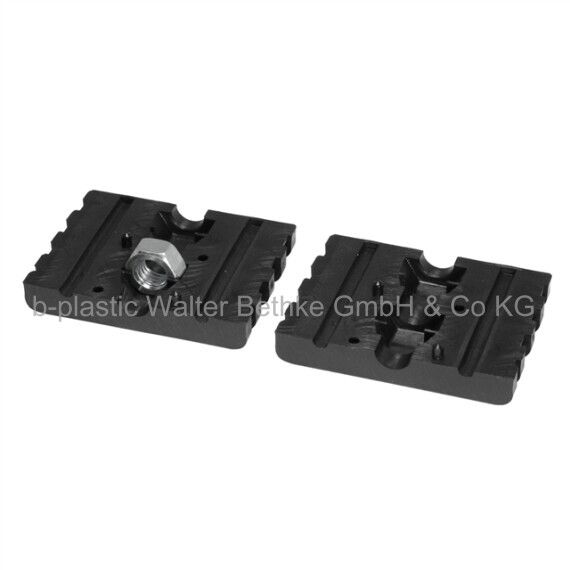

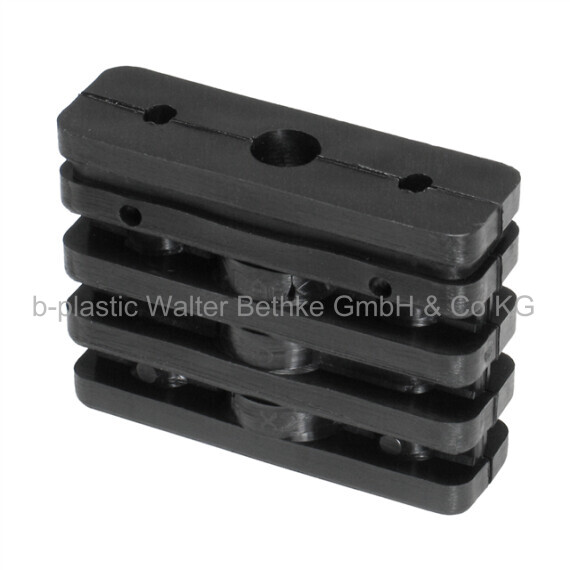

Assembled expander connectors without collar made of PA for rectangular tubes with one hexagon nut (in the front)

Your session has expired, please log in again.
EVRMV
EVRMV
EVRMV
EVRMV
EVRMV
EVRMV
EVRMV
EVRMV
EVRMV
EVRMV
EVRMV
EVRMV
EVRMV
EVRMV
PDF data sheet
  • Base body: Polyamide (PA)
  • Nut: zinc-plated steel
black
  • These two-part expander connectors without collar have tapered conical cavities for hexagon nuts or screws. Tightening of the thread presses the connector against inner tube wall (rawle plug effect), providing a connection resistand to tension. The intensitiy of this resistance depends to a degree from the quality of the tubes (tolerances, roughness, welding seam, etc.) and as well the torque of the tightening. We advise to check the application beforehand.
  • Stepped bores in the tube (outer bore larger than the diameter of the screw head, inner hole suitable for the respective thread) and use of slotted or hexagon socket screws allow high extraction forces without deformation of the tube wall.
  • Right-angled connection to trusses
  • Tube extensions (1 expander with nut and 1 expander with screw)
  • Subsequent installation of shelf compartments in already existing constructions
  • Frequently disassembled and reassembled racks
  • Invisible connections
  • Order-related production for individual article sizes! Please ask for minimum quantity.

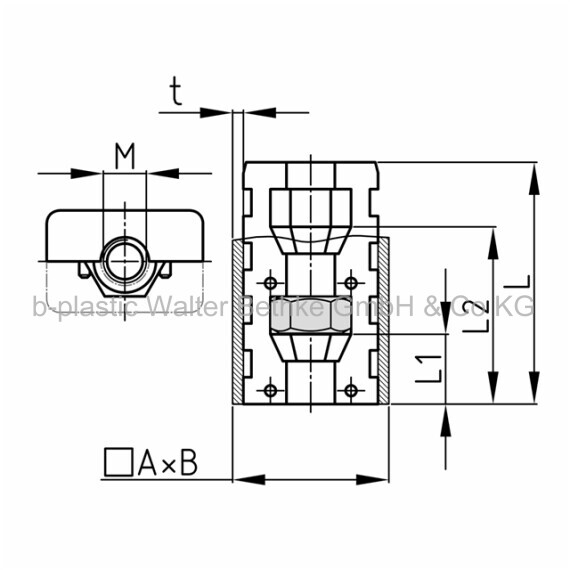

Configure your article. Enter multiple parameters to get the best result.

A in mm:

B in mm:

L in mm:

L1 in mm:

L2 in mm:

M:

t in mm:

Your article results:

  • Order-No. A
    mm    		B
    mm    		L
    mm    		L1
    mm    		L2
    mm    		Mt
    mm
  • EVRMV 30x15x1,5 / M5
    EVRMV 30x15x1,5 / M5 3015421232M51,5
  • EVRMV 30x15x1,5 / M6
    EVRMV 30x15x1,5 / M6 3015421232M61,5
  • EVRMV 30x20x1,5 / M6
    EVRMV 30x20x1,5 / M6 3020431232M61,5
  • EVRMV 30x20x1,5 / M8
    EVRMV 30x20x1,5 / M8 3020431232M81,5
  • EVRMV 30x20x2 / M6
    EVRMV 30x20x2 / M6 3020431232M62
  • EVRMV 40x15x2 / M5
    EVRMV 40x15x2 / M5 4015421433M52
  • EVRMV 40x20x1,5 / M8
    EVRMV 40x20x1,5 / M8 4020421232M81,5
  • EVRMV 40x20x1,5 / M 8 KURZ
    EVRMV 40x20x1,5 / M 8 KURZ 40203012M81,5
  • EVRMV 40x25x2 / M10
    EVRMV 40x25x2 / M10 4025421030M102
  • EVRMV 50x25x1,2-1,6 / M10
    EVRMV 50x25x1,2-1,6 / M10 5025441030M101,2-1,6
  • EVRMV 50x25x2 / M10
    EVRMV 50x25x2 / M10 5025431030M102
  • EVRMV 50x30x2 / M10
    EVRMV 50x30x2 / M10 503038825M102
  • EVRMV 60x30x2 / M10
    EVRMV 60x30x2 / M10 6030401030M102
  • EVRMV 60x40x2 / M10
    EVRMV 60x40x2 / M10 6040431030M102
