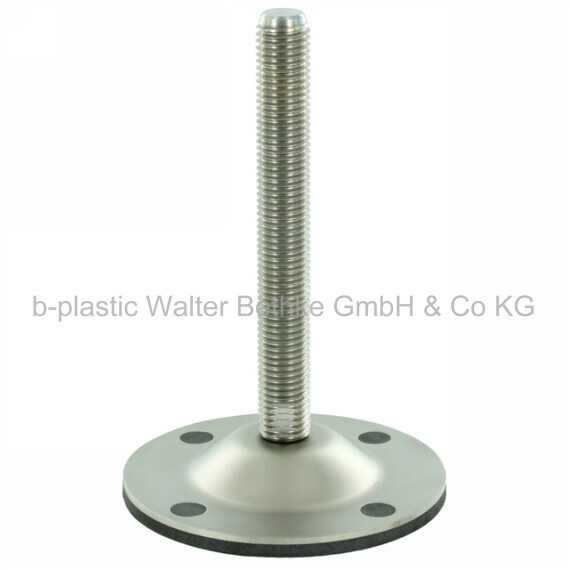

Machine foot - MFDR
Form-punched machine feet made of stainless steel with fixing holes and vulcanised rubber pad
Configure your article. Enter multiple parameters to get the best result.

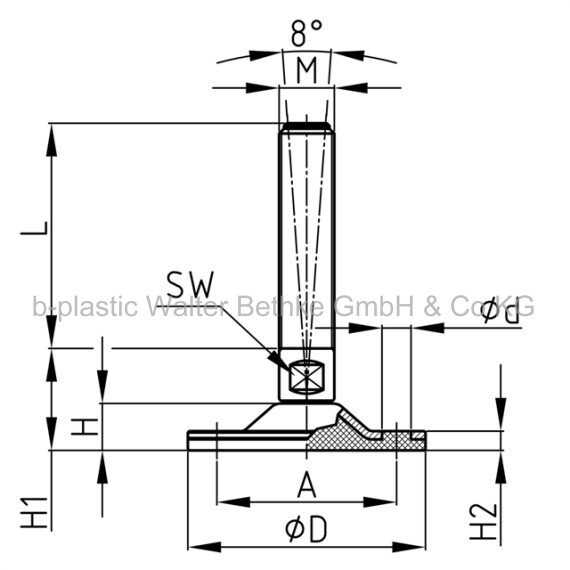

A in mm:
D in mm:
d in mm:
F max. in kg:
H in mm:
H1 in mm:
H2 in mm:
L in mm:
M:
WAF in mm:
Your article results:
Order-No. A
mmD
mmd
mmF max.
kgH
mmH1
mmH2
mmL
mmM WAF
mm- MFDR 85 / M16x100
MFDR 85 / M16x100 65 85 10,5 1200 13 30 7 100 M16 13 - MFDR 85 / M16x150
MFDR 85 / M16x150 65 85 10,5 1200 13 30 7 150 M16 13 - MFDR 85 / M16x175
MFDR 85 / M16x175 65 85 10,5 1200 13 30 7 175 M16 13 - MFDR 85 / M20x100
MFDR 85 / M20x100 65 85 10,5 1200 13 30 7 100 M20 17 - MFDR 85 / M20x150
MFDR 85 / M20x150 65 85 10,5 1200 13 30 7 150 M20 17 - MFDR 85 / M20x200
MFDR 85 / M20x200 65 85 10,5 1200 13 30 7 200 M20 17 - MFDR 123 / M16x100
MFDR 123 / M16x100 98 123 12,5 2000 13 37 7 100 M16 13 - MFDR 123 / M16x150
MFDR 123 / M16x150 98 123 12,5 2000 13 37 7 150 M16 13 - MFDR 123 / M16x170
MFDR 123 / M16x170 98 123 12,5 2000 13 37 7 175 M16 13 - MFDR 123 / M20x100
MFDR 123 / M20x100 98 123 12,5 2000 17 37 7 100 M20 17 - MFDR 123 / M20x150
MFDR 123 / M20x150 98 123 12,5 2000 17 37 7 150 M20 17 - MFDR 123 / M20x200
MFDR 123 / M20x200 98 123 12,5 2000 17 37 7 200 M20 17 - MFDR 123 / M24x100
MFDR 123 / M24x100 98 123 12,5 2000 20 38 7 100 M24 20 - MFDR 123 / M24x150
MFDR 123 / M24x150 98 123 12,5 2000 20 38 7 150 M24 20 - MFDR 123 / M24x200
MFDR 123 / M24x200 98 123 12,5 2000 20 38 7 200 M24 20 - MFDR 123 / M30x150
MFDR 123 / M30x150 98 123 12,5 2000 26 38 7 150 M30 26 - MFDR 123 / M30x200
MFDR 123 / M30x200 98 123 12,5 2000 26 38 7 200 M30 26 - MFDR 123 / M30x250
MFDR 123 / M30x250 98 123 12,5 2000 26 38 7 250 M30 26
