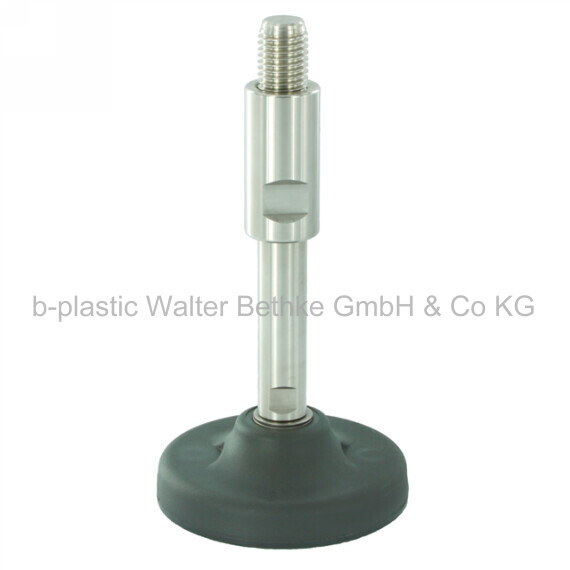

Machine feet made of glass fibre reinforced polyamide with stainless steel thread and stainless steel sealing bush

Your session has expired, please log in again.
MFTG
MFTG
MFTG
MFTG
MFTG
MFTG
MFTG
MFTG
MFTG
MFTG
PDF data sheet
  • Thread: AISI 304 (A2)
  • Bush: AISI 304 (A2)
  • Base: glass fibre reinforced polyamide (PA-GF)
grey
  • The machine base has a sealing bush that covers parts of the thread. An O-ring is incorporated inside the bush. The sealing ring prevents the penetration of dirt by mechanically sticking to the thread surface. Thus the strictest legal hygiene standards are fulfilled.
  • Die abgerundete Form und der verdeckte Übergang vom Fuß zum Gewinde erleichtern die Reinigung.
  • The machine foot can compensate for uneven floors up to 4°.
  • Pharmaceutical industry, food industry, beverage industry, dairies, chemical industry
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.
  • Machine foot made of stainless steel AISI 316 (A4)

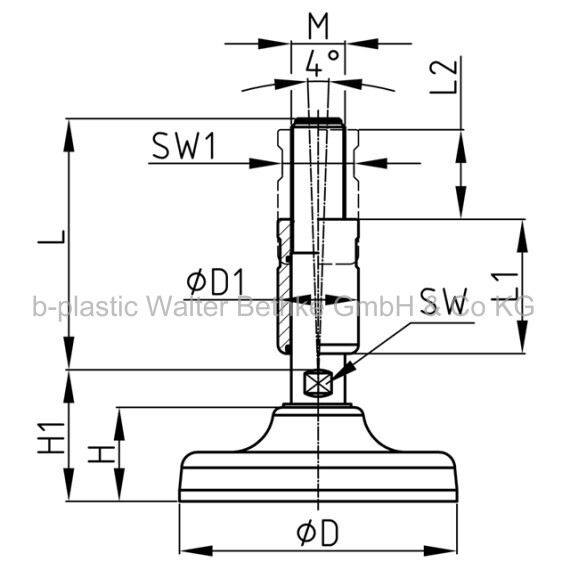

Configure your article. Enter multiple parameters to get the best result.

D in mm:

D1 in mm:

F max. in kg:

H in mm:

H1 in mm:

L in mm:

L1 in mm:

L2 in mm:

M:

WAF in mm:

SW1 in mm:

Your article results:

  • Order-No. D
    mm    		D1
    mm    		F max.
    kg    		H
    mm    		H1
    mm    		L
    mm    		L1
    mm    		L2
    mm    		MWAF
    mm    		SW1
    mm
  • MFTG 103 / M20x150
    MFTG 103 / M20x150 10330200037521506040M201726
  • MFTG 103 / M24x150
    MFTG 103 / M24x150 10335200037521506040M242030
  • MFTG 123 / M20x150
    MFTG 123 / M20x150 12330300042571506040M201726
  • MFTG 123 / M24x150
    MFTG 123 / M24x150 12335300042571506040M242030
  • MFTG 123 / M30x150
    MFTG 123 / M30x150 12342300042571506040M302636
