Adjustment plugs - VJK/R

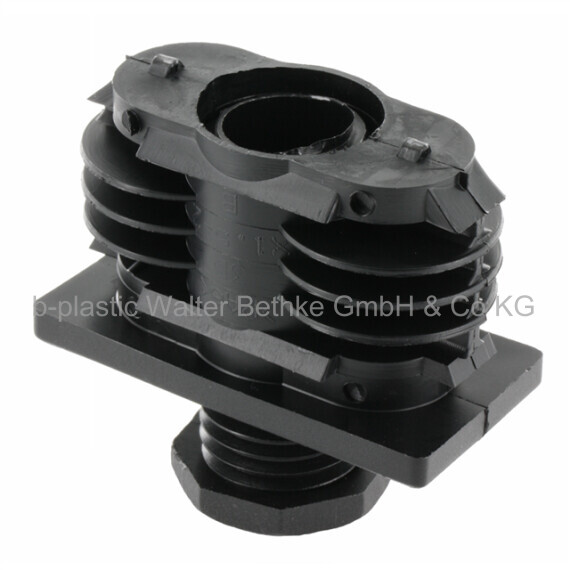

Adjusting plugs made of PA 6 for rectangular tubes with two-piece outer body and injection-moulded thread
Configure your article. Enter multiple parameters to get the best result.

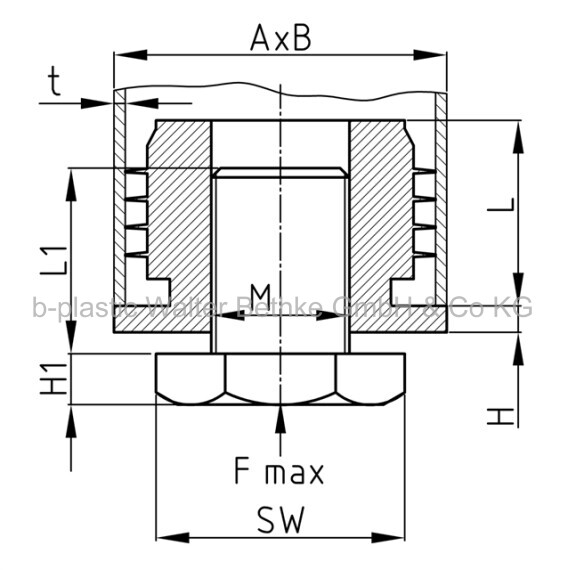

A in mm:
B in mm:
F max. in kg:
H in mm:
H1 in mm:
L in mm:
L1 in mm:
M:
WAF in mm:
t in mm:
Your article results:
Order-No. A
mmB
mmF max.
kgH
mmH1
mmL
mmL1
mmM WAF
mmt
mm- VJK30x20 / M12x30
VJK30x20 / M12x30 30 20 100 5 5 23-34 32 M12 19 1,5-2 - VJK30x20 / M12x50
VJK30x20 / M12x50 30 20 100 5 5 23-34 52 M12 19 1,5-2 - VJK40x20 / M12x30
VJK40x20 / M12x30 40 20 100 5 5 23-34 32 M12 19 1,5-2 - VJK40x20 / M12x50
VJK40x20 / M12x50 40 20 100 5 5 23-34 52 M12 19 1,5-2 - VJK40x25x2 / M16x30/21 *
VJK40x25x2 / M16x30/21 * 40 25 150 5 8 23-34 40 M16 21 2 - VJK40x25x2 / M16x30 *
VJK40x25x2 / M16x30 * 40 25 150 5 5 23-34 37 M16 27 2 - VJK40x25x2 / M16x30/8 *
VJK40x25x2 / M16x30/8 * 40 25 150 5 8 23-34 39 M16 27 2 - VJK40x25x3 / M12x30 *
VJK40x25x3 / M12x30 * 40 25 100 5 5 23-34 32 M12 19 3 - VJK40x25x3 / M12x50 *
VJK40x25x3 / M12x50 * 40 25 100 5 5 23-34 52 M12 19 3 - VJK40x27 / M22x30 *
VJK40x27 / M22x30 * 40 27 250 5 5 23-34 35 M22 27 1,5 - VJK40x27 / M22x30/8 *
VJK40x27 / M22x30/8 * 40 27 250 5 8 23-34 38 M22 27 1,5 - VJK40x27 / M22x50 *
VJK40x27 / M22x50 * 40 27 250 5 5 23-34 52 M22 27 1,5 - VJK40x27 / M22x80 *
VJK40x27 / M22x80 * 40 27 250 5 5 23-34 85 M22 27 1,5 - VJK40x30 / M22x30
VJK40x30 / M22x30 40 30 250 5 5 23-34 35 M22 27 1,5-2 - VJK40x30 / M22x30/8
VJK40x30 / M22x30/8 40 30 250 5 8 23-34 38 M22 27 1,5-2 - VJK40x30 / M22x50
VJK40x30 / M22x50 40 30 250 5 5 23-34 52 M22 27 1,5-2 - VJK40x30 / M22x80
VJK40x30 / M22x80 40 30 250 5 5 23-34 85 M22 27 1,5-2 - VJK40x30x3 / M22x30 *
VJK40x30x3 / M22x30 * 40 30 250 5 5 23-34 35 M22 27 2,5-3 - VJK40x30x3 / M22x30/8 *
VJK40x30x3 / M22x30/8 * 40 30 250 5 8 23-34 38 M22 27 2,5-3 - VJK40x30x3 / M22x50 *
VJK40x30x3 / M22x50 * 40 30 250 5 5 23-34 52 M22 27 2,5-3 - VJK40x30x3 / M22x80 *
VJK40x30x3 / M22x80 * 40 30 250 5 5 23-34 85 M22 27 2,5-3 - VJK45x25 / M16x30/21 *
VJK45x25 / M16x30/21 * 45 25 150 5 8 23-34 40 M16 21 1,5-2 - VJK45x25 / M16x30 *
VJK45x25 / M16x30 * 45 25 150 5 5 23-34 37 M16 27 1,5-2 - VJK45x25 / M16x30/8 *
VJK45x25 / M16x30/8 * 45 25 150 5 8 23-34 39 M16 27 1,5-2 - VJK50x20 / M12x30
VJK50x20 / M12x30 50 20 100 5 5 23-34 32 M12 19 1,5-2 - VJK50x20 / M12x50
VJK50x20 / M12x50 50 20 100 5 5 23-34 52 M12 19 1,5-2 - VJK50x25 / M16x30/21 *
VJK50x25 / M16x30/21 * 50 25 150 5 8 23-34 40 M16 21 1,5-2 - VJK50x25 / M16x30 *
VJK50x25 / M16x30 * 50 25 150 5 5 23-34 37 M16 27 1,5-2 - VJK50x25 / M16x30/8 *
VJK50x25 / M16x30/8 * 50 25 150 5 8 23-34 39 M16 27 1,5-2 - VJK50x30 / M22x30
VJK50x30 / M22x30 50 30 250 5 5 23-34 35 M22 27 1,5-2 - VJK50x30 / M22x30/8
VJK50x30 / M22x30/8 50 30 250 5 8 23-34 38 M22 27 1,5-2 - VJK50x30 / M22x50
VJK50x30 / M22x50 50 30 250 5 5 23-34 52 M22 27 1,5-2 - VJK50x30 / M22x80
VJK50x30 / M22x80 50 30 250 5 5 23-34 85 M22 27 1,5-2 - VJK50x40 / M22x30
VJK50x40 / M22x30 50 40 250 5 5 23-34 35 M22 27 1,5-2 - VJK50x40 / M22x30/8
VJK50x40 / M22x30/8 50 40 250 5 8 23-34 38 M22 27 1,5-2 - VJK50x40 / M22x50
VJK50x40 / M22x50 50 40 250 5 5 23-34 52 M22 27 1,5-2 - VJK50x40 / M22x80
VJK50x40 / M22x80 50 40 250 5 5 23-34 85 M22 27 1,5-2 - VJK55x25 / M16x30/21
VJK55x25 / M16x30/21 55 25 150 5 8 23-34 40 M16 21 1,5-2 - VJK55x25 / M16x30
VJK55x25 / M16x30 55 25 150 5 5 23-34 37 M16 27 1,5-2 - VJK55x25 / M16x30/8
VJK55x25 / M16x30/8 55 25 150 5 8 23-34 38 M16 27 1,5-2 - VJK55x34 / M22x30
VJK55x34 / M22x30 55 34 250 5 5 23-34 35 M22 27 1,5-2 - VJK55x34 / M22x30/8
VJK55x34 / M22x30/8 55 34 250 5 8 23-34 38 M22 27 1,5-2 - VJK55x34 / M22x50
VJK55x34 / M22x50 55 34 250 5 5 23-34 52 M22 27 1,5-2 - VJK55x34 / M22x80
VJK55x34 / M22x80 55 34 250 5 5 23-34 85 M22 27 1,5-2 - VJK60x30 / M22x30
VJK60x30 / M22x30 60 30 250 5 5 23-34 35 M22 27 1,5-2 - VJK60x30 / M22x30/8
VJK60x30 / M22x30/8 60 30 250 5 8 23-34 38 M22 27 1,5-2 - VJK60x30 / M22x50
VJK60x30 / M22x50 60 30 250 5 5 23-34 52 M22 27 1,5-2 - VJK60x30 / M22x80
VJK60x30 / M22x80 60 30 250 5 5 23-34 85 M22 27 1,5-2 - VJK60x30x3 / M16x30/21 *
VJK60x30x3 / M16x30/21 * 60 30 150 5 8 23-34 40 M16 21 3 - VJK60x30x3 / M16x30 *
VJK60x30x3 / M16x30 * 60 30 150 5 5 23-34 37 M16 27 3 - VJK60x30x3 / M16x30/8 *
VJK60x30x3 / M16x30/8 * 60 30 150 5 8 23-34 38 M16 27 3 - VJK60x40 / M22x30
VJK60x40 / M22x30 60 40 250 5 5 23-34 35 M22 27 1,5-2 - VJK60x40 / M22x30/8
VJK60x40 / M22x30/8 60 40 250 5 8 23-34 38 M22 27 1,5-2 - VJK60x40 / M22x50
VJK60x40 / M22x50 60 40 250 5 5 23-34 52 M22 27 1,5-2 - VJK60x40 / M22x80
VJK60x40 / M22x80 60 40 250 5 5 23-34 85 M22 27 1,5-2 - VJK80x30 / M22x30
VJK80x30 / M22x30 80 30 250 5 5 23-34 35 M22 27 1,5-2 - VJK80x30 / M22x30 / 8
VJK80x30 / M22x30 / 8 80 30 250 5 8 23-34 38 M22 27 1,5-2 - VJK80x30 / M22x50
VJK80x30 / M22x50 80 30 250 5 5 23-34 52 M22 27 1,5-2 - VJK80x30 / M22x80
VJK80x30 / M22x80 80 30 250 5 5 23-34 85 M22 27 1,5-2 - VJK 100x40 / M22x30 *
VJK 100x40 / M22x30 * 100 40 250 5 5 23-34 35 M22 27 1,5-2 - VJK100x40 / M22x30/8 *
VJK100x40 / M22x30/8 * 100 40 250 5 8 23-34 38 M22 27 1,5-2 - VJK 100x40x2,5-3 / M22x30 *
VJK 100x40x2,5-3 / M22x30 * 100 40 250 5 8 23-34 38 M22 27 2,5-3 - VJK100x40 / M22x50 *
VJK100x40 / M22x50 * 100 40 250 5 5 23-34 52 M22 27 1,5-2 - VJK100x40 / M22x80 *
VJK100x40 / M22x80 * 100 40 250 5 5 23-34 85 M22 27 1,5-2
Login to get price and discount information for all products.
