Threaded insert - CGM
Threaded plugs made of PE for square tubes with long overmoulded threaded nut
Your session has expired, please log in again.
Configure your article. Enter multiple parameters to get the best result.

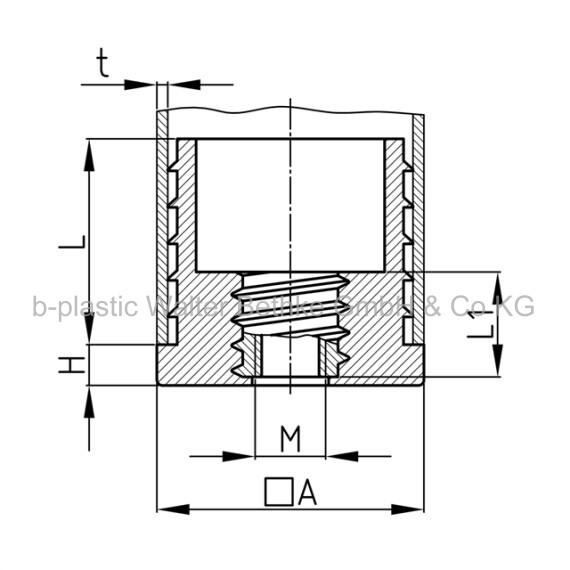

A in mm:
H in mm:
L in mm:
L1 in mm:
M:
t in mm:
Your article results:
Order-No. A
mmH
mmL
mmL1
mmM t
mm- CGM 20x20 / M8
CGM 20x20 / M8 20 7 30 24 M8 1-2 - CGM 25x25 / M8
CGM 25x25 / M8 25 7 30 14 M8 1-2 - CGM 25x25 / M10
CGM 25x25 / M10 25 7 30 14 M10 1-2 - CGM 30x30 / M8
CGM 30x30 / M8 30 8 30 14 M8 1-2 - CGM 30x30 / M10
CGM 30x30 / M10 30 8 30 14 M10 1-2
