Machine foot - MFSSH

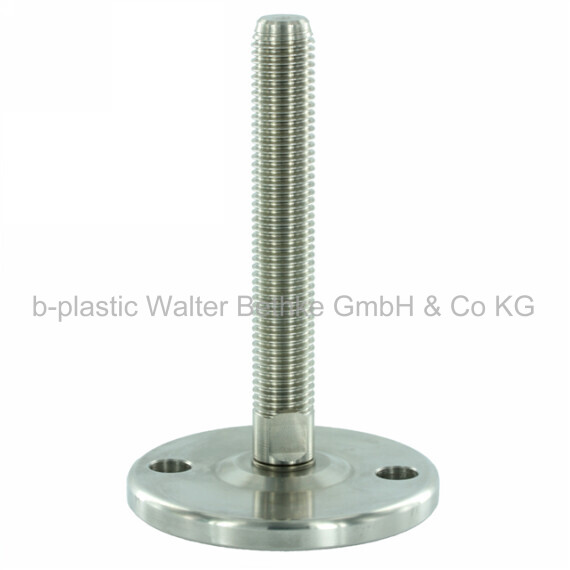

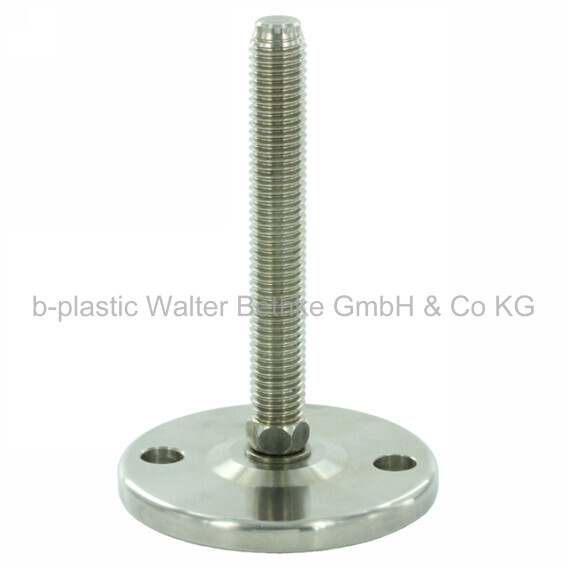

Machine feet made of stainless steel with fixing holes and antislip pad (A)

Your session has expired, please log in again.
MFSSH
MFSSH
MFSSH
MFSSH
PDF data sheet
  • Base body: AISI 304 (A2)
  • Antislip pad: NBR 70 Shore

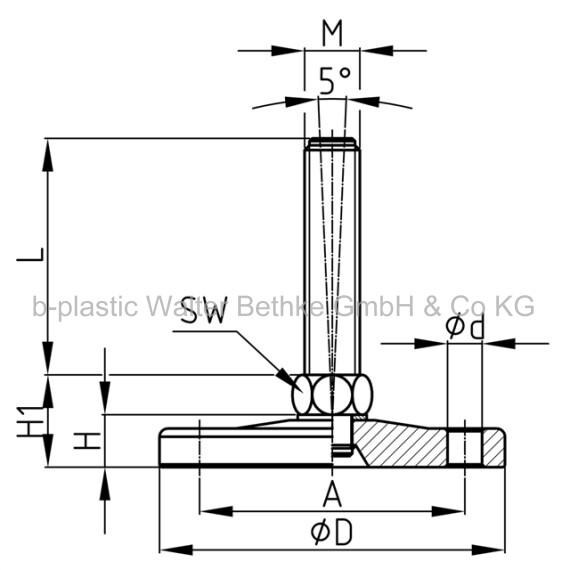

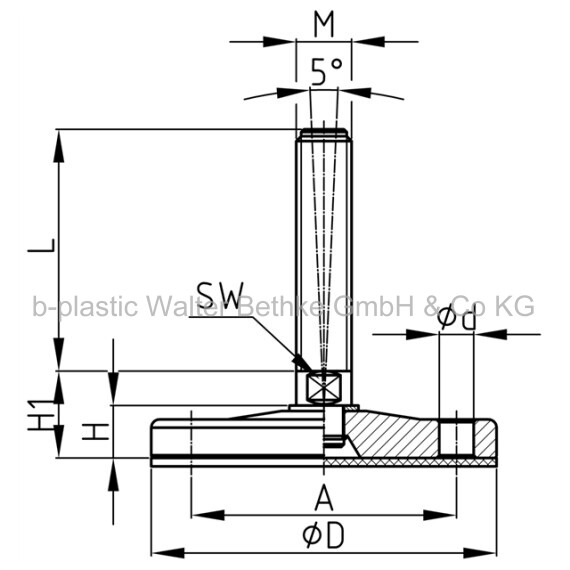

  • Depending on the size of the thread or the foot diameter, the machine foot is provided with a chamfer on both sides or with a hexagon as a spanner flat.
  • The machine foot can compensate for uneven floors up to 5°.
  • The machine foot has a turned surface.
  • The antislip pad is supplied without holes.
  • The thread is screwed into the foot and can be turned!
  • Food industry, chemical industry, cosmetics industry, beverage industry, wine cellars
  • The load capacity of the screw (buckling length!) may be less than indicated in the table.
  • Machine foot made of stainless steel AISI 316 (A4)
  • Delivery with additional steel nut possible.
