90-Grad connection - RVB 90

Multi-purpose, form- and friction-locking 90 Grad connectors for round tubes made of PA

Your session has expired, please log in again.
RVB 90 (>=20)
RVB 90 (>=20)
RVB 90 (>=20)
RVB 90 (<20)
RVB 90 (>=20)
RVB 90 (>=20)
RVB 90 (>=20)
RVB 90 (<20)
RVB 90 (>=20)
RVB 90 (>=20)
RVB 90 (>=20)
RVB 90 (<20)
RVB 90 (>=20)
RVB 90 (>=20)
RVB 90 (>=20)
RVB 90 (<20)
PDF data sheet

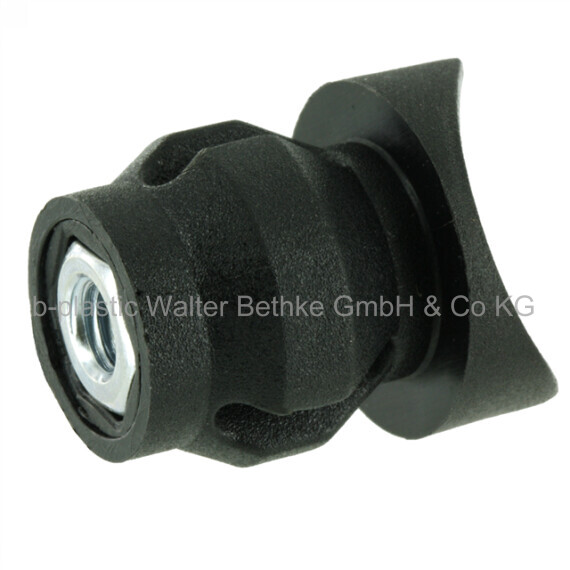

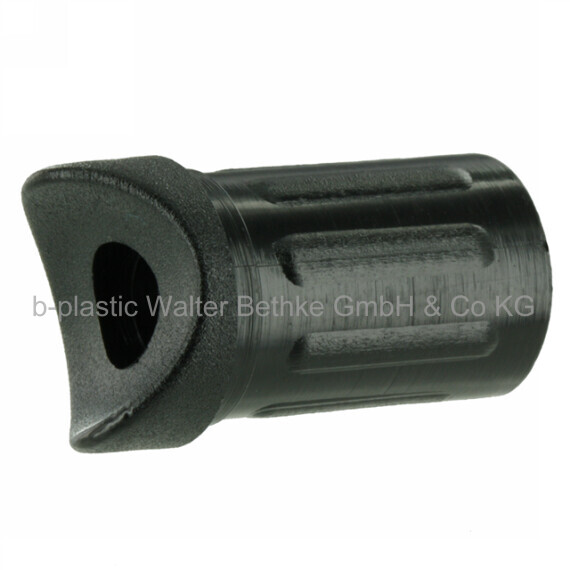

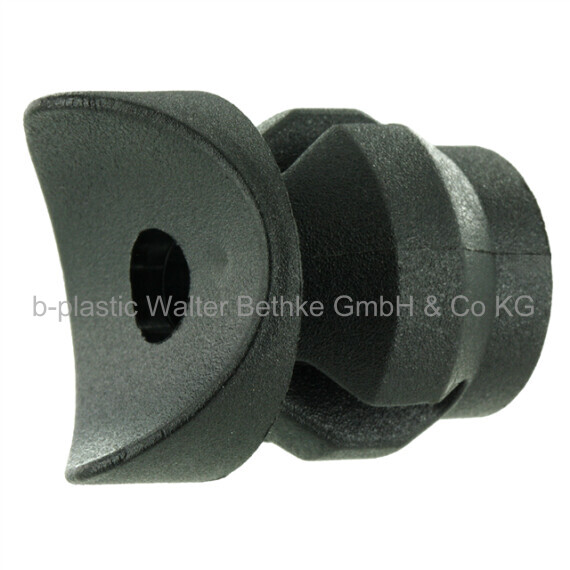

  • Base body: Polyamide (PA 6)
  • Nut: zinc-plated steel
black RAL 9005
  • Due to the significant expander effect usage of thin-walled tubes in connection with less strength is not recommendable (soft flexible Aluminium and plastic with tube wall thickness 1 mm).
  • The screw which screws down the pre-assembled cone nut (positioned in the connector) reaches through the profile which has to be fixed under 90° - this screw is not part of the delivery and will be assigned and assembled by the customer after fixing of needed length.
  • The pull-out strength depends mainly on the pipe tolerance and the surface condition of the inner pipe (smooth coatings that protrude into the inner pipe should be avoided, lubricant residues should be removed).
  • For 90° connections of round pipes with profiles such as round pipe, flat oval pipe or half-round profile.
  • Tube connectors are supplied pre-assembled.
  • The connector is pushed into tube 1 up to the collar stop and tube 2 is friction screwed/tightened after positive contact with tube 1.
  • With dry, bare, oil- and coating-free pipes with sufficient strength, high pull-out strengths can be achieved with relatively low tightening torques.
  • The connections can be tightened up to the cone stop. However, the pipe strength must be observed (pipe expansion).
  • Further sizes (nominal-Ø and wall thickness of tube)
  • Sizes RVB 90 for docking tube 2 with variational tube diameter

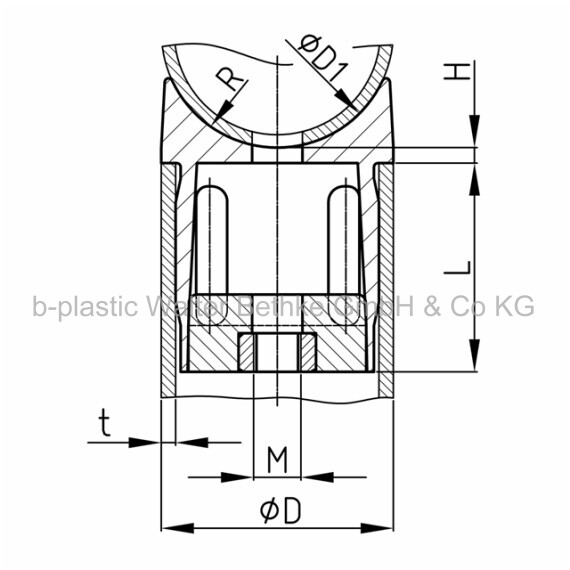

Configure your article. Enter multiple parameters to get the best result.

D in mm:

D1 in mm:

H in mm:

L in mm:

M:

t in mm:

Your article results:

  • Order-No. D
    mm    		D1
    mm    		H
    mm    		L
    mm    		Mt
    mm
  • RVB 90 / 15x1
    RVB 90 / 15x1 1515220M61
  • RVB 90 / 16x1
    RVB 90 / 16x1 1616220M61
  • RVB 90 / 16x1,5
    RVB 90 / 16x1,5 1616220M61,5
  • RVB 90 / 18x1
    RVB 90 / 18x1 1818220M61
  • RVB 90 / 18x1,5
    RVB 90 / 18x1,5 1818220M61,5
  • RVB 90 / 20x1
    RVB 90 / 20x1 2020220M61
  • RVB 90 / 20x1,5
    RVB 90 / 20x1,5 2020220M61,5
  • RVB 90 / 22x1
    RVB 90 / 22x1 2222220M61
  • RVB 90 / 22x1,5
    RVB 90 / 22x1,5 2222220M61,5
  • RVB 90 / 23x1
    RVB 90 / 23x1 2323220M61
  • RVB 90 / 24x1
    RVB 90 / 24x1 2424220M61
  • RVB 90 / 24x1,5
    RVB 90 / 24x1,5 2424220M61,5
  • RVB 90 / 25x1
    RVB 90 / 25x1 2525226M61
  • RVB 90 / 25x1,5
    RVB 90 / 25x1,5 2525226M61,5
  • RVB 90 / 25x2
    RVB 90 / 25x2 2525226M62
  • RVB 90 / 26x1
    RVB 90 / 26x1 2626226M61
  • RVB 90 / 26x1,5
    RVB 90 / 26x1,5 2626226M61,5
  • RVB 90 / 26x2
    RVB 90 / 26x2 2626226M62
  • RVB 90 / 26x2,5
    RVB 90 / 26x2,5 2626226M62,5
  • RVB 90 / 27x1
    RVB 90 / 27x1 2727226M61
  • RVB 90 / 27x1,5
    RVB 90 / 27x1,5 2727226M61,5
  • RVB 90 / 27x2
    RVB 90 / 27x2 2727226M62
  • RVB 90 / 27x2,5
    RVB 90 / 27x2,5 2727226M62,5
  • RVB 90 / 28x1
    RVB 90 / 28x1 2828226M61
  • RVB 90 / 28x1,5
    RVB 90 / 28x1,5 2828226M61,5
  • RVB 90 / 28x2
    RVB 90 / 28x2 2828226M62
  • RVB 90 / 28x2,5
    RVB 90 / 28x2,5 2828226M62,5
  • RVB 90 / 30x1
    RVB 90 / 30x1 3030226M61
  • RVB 90 / 30x1,5
    RVB 90 / 30x1,5 3030226M61,5
  • RVB 90 / 30x2
    RVB 90 / 30x2 3030226M62
  • RVB 90 / 32x1
    RVB 90 / 32x1 3232226M61
  • RVB 90 / 32x1,5
    RVB 90 / 32x1,5 3232226M61,5
  • RVB 90 / 32x2
    RVB 90 / 32x2 3232226M62
  • RVB 90 / 32x2,5
    RVB 90 / 32x2,5 3232226M62,5
