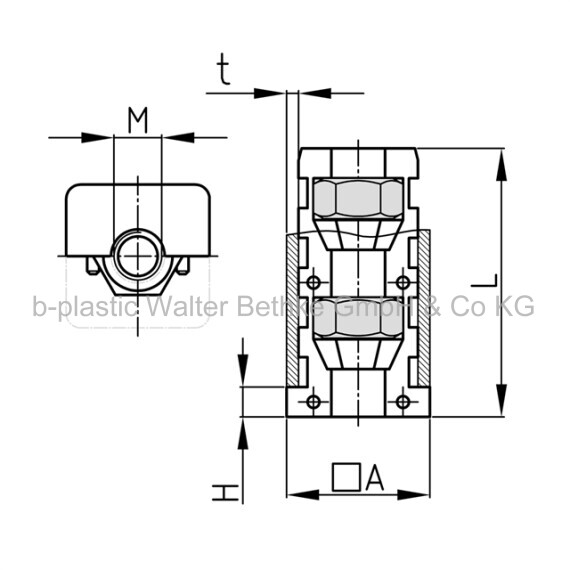

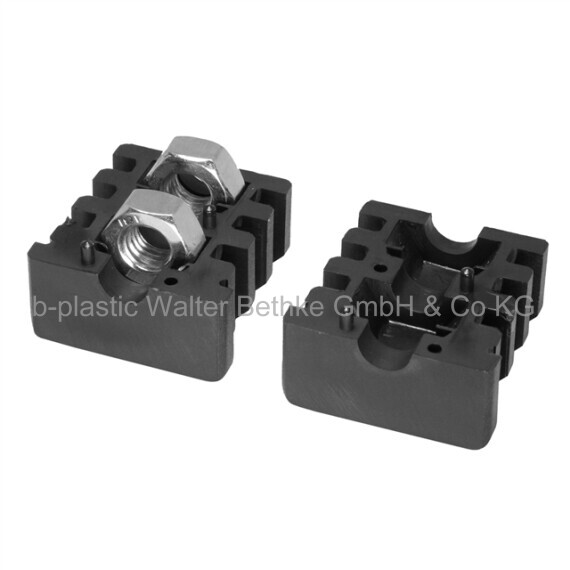

Assembled expander plug - EBQM2
Assembled expander plugs with collar made of PA for square tubes with two hexagon nuts
Configure your article. Enter multiple parameters to get the best result.
A in mm:
H in mm:
L in mm:
M:
t in mm:
F max. in kg:
Your article results:
Order-No. A
mmH
mmL
mmM t
mmF max.
kg- EBQM2 20x20x1,5 /M 6
EBQM2 20x20x1,5 /M 6 20 5 42 M6 1,5 150 - EBQM2 20x20x1,5 /M8
EBQM2 20x20x1,5 /M8 20 5 42 M8 1,5 300 - EBQM2 20x20x1,5 /M8 OL
EBQM2 20x20x1,5 /M8 OL 20 5 42 M8 1,5 300 - EBQM2 22x22x1,5 /M8
EBQM2 22x22x1,5 /M8 22 5 40 M8 1,5 300 - EBQM2 25x25x1,5 /M8
EBQM2 25x25x1,5 /M8 25 5 41 M8 1,5 300 - EBQM2 25x25x1,5 /M10
EBQM2 25x25x1,5 /M10 25 5 42 M10 1,5 300 - EBQM2 30x30x1,5 /M8
EBQM2 30x30x1,5 /M8 30 5 42 M8 1,5 300 - EBQM2 30x30x1,5 /M10
EBQM2 30x30x1,5 /M10 30 5 42 M10 1,5 300 - EBQM2 30x30x2 /M8
EBQM2 30x30x2 /M8 30 5 42 M8 2 300 - EBQM2 30x30x2 /M10
EBQM2 30x30x2 /M10 30 5 42 M10 2 300 - EBQM2 31,75x31,75x1,2-1,6/M10
EBQM2 31,75x31,75x1,2-1,6/M10 31,75 5 37 M10 1,2-1,6 300 - EBQM2 32x32x2 /M10
EBQM2 32x32x2 /M10 32 5 37 M10 2 300 - EBQM2 35x35x1,6 /M10
EBQM2 35x35x1,6 /M10 35 5 37 M10 1,6 300 - EBQM2 35x35x2 /M10
EBQM2 35x35x2 /M10 35 5 42 M10 2 300 - EBQM2 38x38x1,5 /M10
EBQM2 38x38x1,5 /M10 38 5 36 M10 1,5 300 - EBQM2 38x38x1,5 /M12
EBQM2 38x38x1,5 /M12 38 5 36 M12 1,5 300 - EBQM2 40x40x1,5 /M10
EBQM2 40x40x1,5 /M10 40 5 42 M10 1,5 300 - EBQM2 40x40x2 /M10
EBQM2 40x40x2 /M10 40 5 42 M10 2 300 - EBQM2 40x40x2 /M10 LG
EBQM2 40x40x2 /M10 LG 40 5 88 M10 2 300 - EBQM2 40x40x2 /M12
EBQM2 40x40x2 /M12 40 5 40 M12 2 300 - EBQM2 40x40x3 /M10
EBQM2 40x40x3 /M10 40 5 37 M10 3 300 - EBQM2 50x50x1,5 /M10
EBQM2 50x50x1,5 /M10 50 5 37 M12 1,5 300 - EBQM2 50x50x1,5 /M12
EBQM2 50x50x1,5 /M12 50 5 37 M14 1,5 300 - EBQM2 50x50x2 /M12
EBQM2 50x50x2 /M12 50 5 37 M12 2 300 - EBQM2 50x50x2,5-3 /M12
EBQM2 50x50x2,5-3 /M12 50 5 39 M12 2 300 - EBQM2 50,8x50,8x1,6 /M10
EBQM2 50,8x50,8x1,6 /M10 50,8 5 38 M10 1,6 300 - EBQM2 60x60x2 /M10
EBQM2 60x60x2 /M10 60 5 38 M10 2 300 - EBQM2 60x60x2 /M10 LG
EBQM2 60x60x2 /M10 LG 60 5 86 M10 2 300 - EBQM2 60x60x2,5 /M10
EBQM2 60x60x2,5 /M10 60 5 41 M10 2,5 300 - EBQM2 70x70x2 /M10
EBQM2 70x70x2 /M10 70 5 42 M10 2 300
Login to get price and discount information for all products.
Product variants
EBQ
Assembled expander plugs with collar made of PA for square tubes, hexagon nuts or screws plugged
EBQMH
Assembled expander plugs with collar made of PA for square tubes with one hexagon nut (rear)
EBQMV
Assembled expander plugs with collar made of PA for square tubes with one hexagon nut (in the front)
