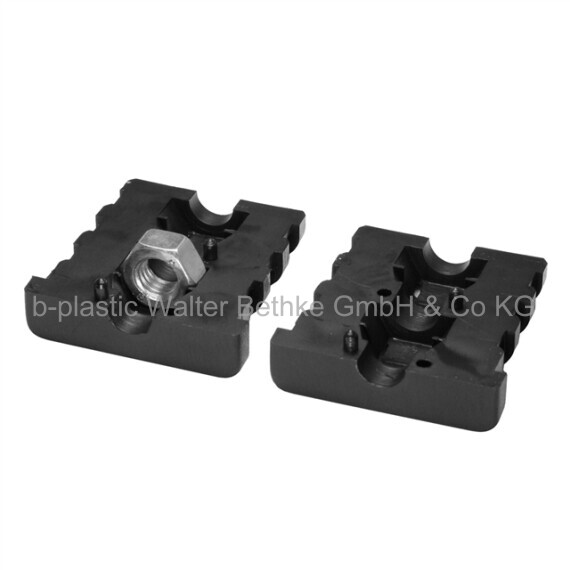

Assembled expander plug - EBRMV
Assembled expander plugs with collar made of PA for rectangular tubes with one hexagon nut (in the front)
Configure your article. Enter multiple parameters to get the best result.

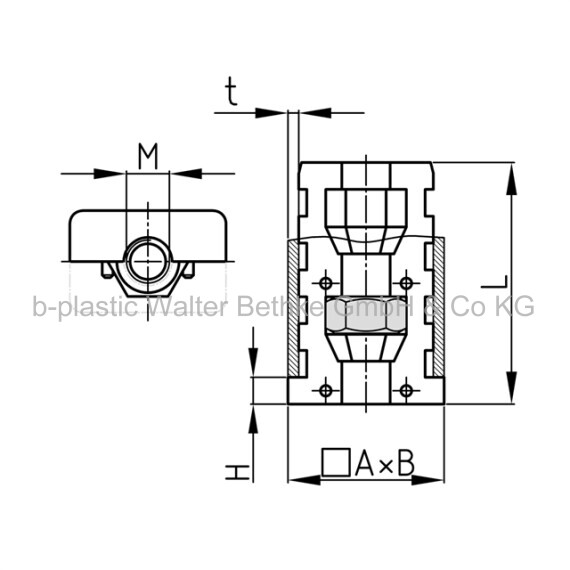

A in mm:
B in mm:
H in mm:
L in mm:
M:
t in mm:
F max. in kg:
Your article results:
Order-No. A
mmB
mmH
mmL
mmM t
mmF max.
kg- EBRMV 30x20x1,5 / M8
EBRMV 30x20x1,5 / M8 30 20 5 42 M8 1,5 300 - EBRMV 40x20x1,5 / M8
EBRMV 40x20x1,5 / M8 40 20 5 41 M8 1,5 300 - EBRMV 40x20x2 / M8
EBRMV 40x20x2 / M8 40 20 5 42 M8 2 300 - EBRMV 40x30x2 / M10
EBRMV 40x30x2 / M10 40 30 5 37 M10 2 300 - EBRMV 50x25x1,2-1,6 / M10
EBRMV 50x25x1,2-1,6 / M10 50 25 5 42 M10 1,2-1,6 300 - EBRMV 50x25x1,2-1,6 / M12
EBRMV 50x25x1,2-1,6 / M12 50 25 5 42 M12 1,2-1,6 300 - EBRMV 50x25x2 / M10
EBRMV 50x25x2 / M10 50 25 5 43 M10 2 300 - EBRMV 50x30x2 / M10
EBRMV 50x30x2 / M10 50 30 5 43 M10 2 300 - EBRMV 60x30x2 / M10
EBRMV 60x30x2 / M10 60 30 5 43,5 M10 2 300 - EBRMV 60x30x2 / M12
EBRMV 60x30x2 / M12 60 30 5 43,5 M12 2 300
