Saddle distance sleeve - EVDRAD

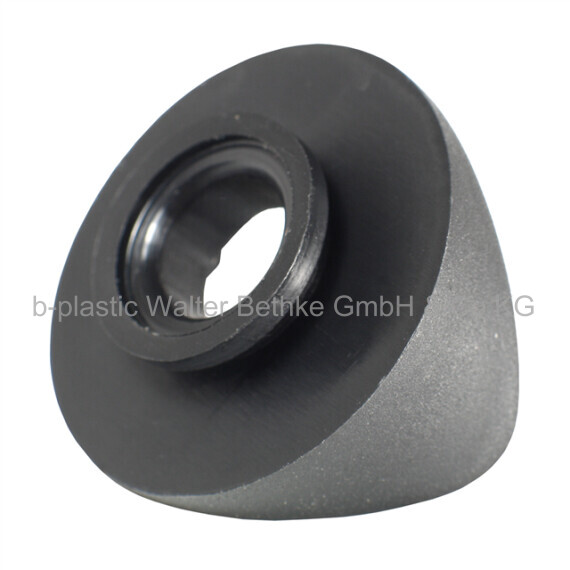

Saddle distance sleeve made of PA 6 with radius and fixing ring for use with series EVRUx

Your session has expired, please log in again.
EVDRAD
EVDRAD
EVDRAD
EVDRAD mit EVRU
EVDRAD
EVDRAD
EVDRAD
EVDRAD mit EVRU
EVDRAD
EVDRAD
EVDRAD
EVDRAD mit EVRU
EVDRAD
EVDRAD
EVDRAD
EVDRAD mit EVRU
PDF data sheet
  • Base body: Polyamide (PA 6)
black
  • Compatible with Expander connector series EVRUx with M8 thread and adapter for this saddle spacer.
  • Round tubes of different diameters can be screwed together at right angles.
  • The saddle spacers are in the connectors rotatable mounted.

Configure your article. Enter multiple parameters to get the best result.

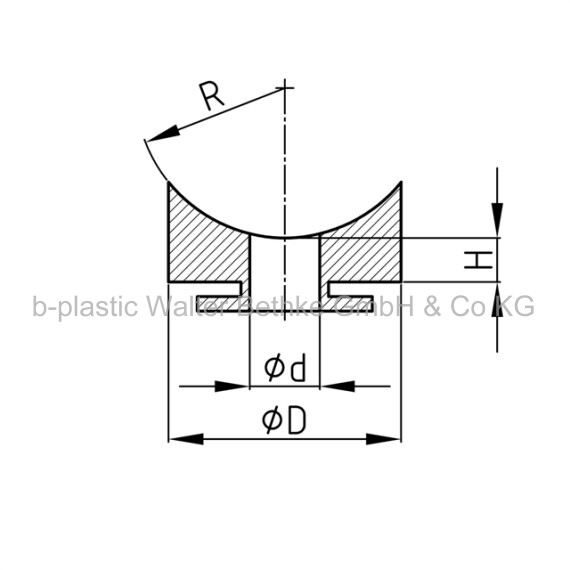

D in mm:

d in mm:

H in mm:

R in mm:

Your article results:

  • Order-No. D
    mm    		d
    mm    		H
    mm    		R
    mm
  • EVDRAD M 8 / 21 R 10,5
    EVDRAD M 8 / 21 R 10,5 218,2210,5
  • EVDRAD M 8 / 22 R13,5
    EVDRAD M 8 / 22 R13,5 228,2213,5
  • EVDRAD M 8 / 27 R13,5
    EVDRAD M 8 / 27 R13,5 278,2213,5
  • EVDRAD M 8 / 33,5 R 16,75
    EVDRAD M 8 / 33,5 R 16,75 33,58,2216,75
  • EVDRAD M 8 / 40 R 20
    EVDRAD M 8 / 40 R 20 408,2220
