Sadddle washer - TDI

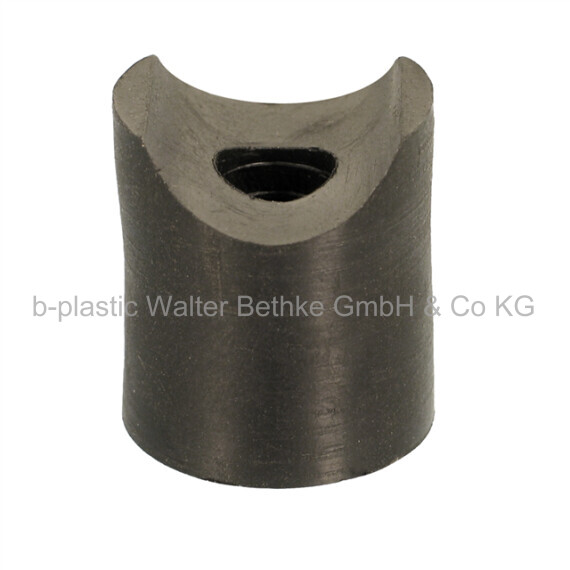

Saddle spacers made oo polyethylene with tube recess on one side
Your session has expired, please log in again.

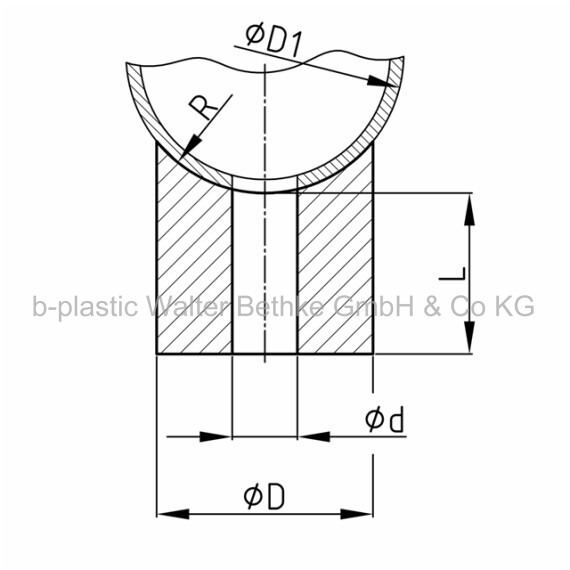

Configure your article. Enter multiple parameters to get the best result.
d in mm:
D in mm:
D1 in mm:
L in mm:
M:
R in mm:
Your article results:
Order-No. d
mmD
mmD1
mmL
mmM R
mm- TDI 13 / 5,5 / 14
TDI 13 / 5,5 / 14 5,5 13 11,5-12,5 14 M5 6 - TDI 13 / 5,5 / 5
TDI 13 / 5,5 / 5 5,5 13 11,5-12,5 5 M5 6 - TDI 13 / 5,5 / 7
TDI 13 / 5,5 / 7 5,5 13 11,5-12,5 7 M5 6 - TDI 17 / 6 / 10
TDI 17 / 6 / 10 6 17 12-14 10 M6 6,5 - TDI 17 / 6 / 14
TDI 17 / 6 / 14 6 17 12-14 14 M6 6,5 - TDI 17 / 6 / 16
TDI 17 / 6 / 16 6 17 12-14 16 M6 6,5 - TDI 17 / 6 / 5
TDI 17 / 6 / 5 6 17 12-14 5 M6 6,5 - TDI 17 / 6 / 7
TDI 17 / 6 / 7 6 17 12-14 7 M6 6,5
